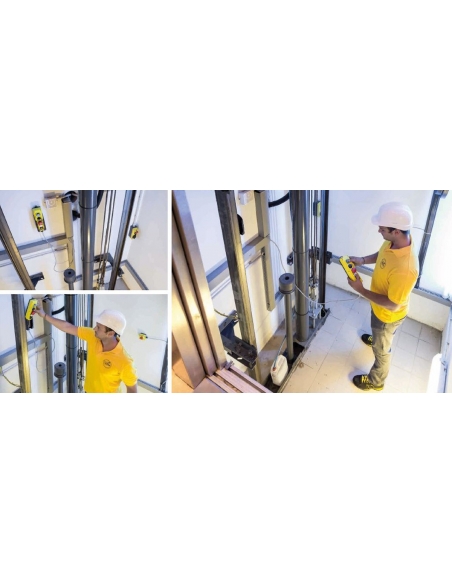

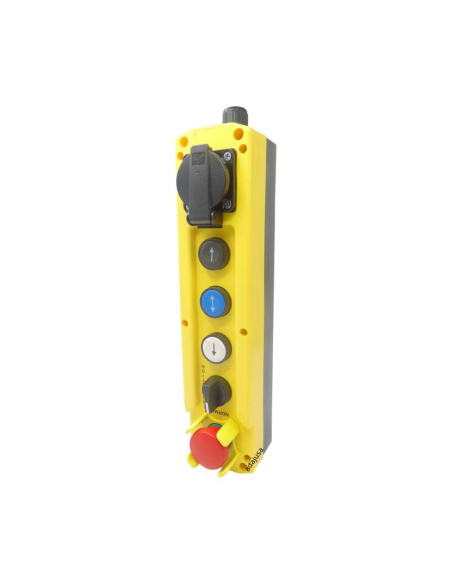

Button box mounted for moat and inspection of elevators, with pushbuttons with monoblock contacts, IP-54.

It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements.

The supply includes:

  • Box for 5 elements with socket for plug type schuko.
  • Emergency pushbutton 1 NC (Possibility to mount another additional contact)
  • Switch 2 positions 90º 0-1 1NO+1NC
  • 2NA Stop Button
  • 2NA up button
  • 2NA stop button
  • Schuko 16a plug base
  • M20 glands

Reference: TLP6E1

logotipo giovenzana adajusa

No queries yet, leave the first!


Button box for pit inspection in elevators, emergency push button stop for applications in elevators and uses in general. Of European manufacture, it complies with all the applicable regulations for this type of installation.

The button is supplied fully equipped with the usual elements in this type of facility. It has an ergonomic design that allows a lot of ease of use.

Emergency pushbutton, with unlocking by turn, equipped with a high capacity contact block (Ith 16a) closed NC and possibility of adding another additional contact. Monoblock type selector control (contacts integrated into the body) with positions 0-1 and contacts 1NC+1NO. Three monoblock type pushbuttons with 2 open contacts (2 NO).

The button includes a base for schuko plug type of 16a with lid.

The button complies with the regulations for use in elevators in safety and inspection applications. it also complies with the machinery directive which allows it to be used in machinery and industrial installations as well. It can be easily fixed on the wall or on a support that allows its mobile use, the support is not included in the supply.

The supply includes:

  • Box of 5 elements in yellow color
  • Ø40 emergency mushroom-head pushbutton, with interlocking and mechanical indication of condition. Has a positive opening nc (NC), an additional contact block can be added
  • Two-position switch (1-2) with 90º rotation, with 1 no and one closed (1NA+1NC) monoblock type
  • Lock button, in blue, with 2 open contacts (2NA) monoblock type
  • Ascent button, in white, with 2 open contacts (2NA) monoblock type
  • Down button (descent), in black, with 2 open contacts (2NA) monoblock type
  • Base for schuko plug of 16a with lid.
  • Glands for M20 cable input.

To complement the contacts included in the supply to the emergency button, you can add more blocks of contacts only of the Giovenzana brand, the references are:

  • 1 nc NC, spring cable fixation: GIPCW01.
  • 1 no NO, cable attachment by spring: GIPCW10.
  • 1 nc NC, screw cable fixation: GIPL004001.
  • 1 no NO, fixing the cable by screw: GIPL004002.

No more contacts can be added to monoblock buttons or replaced.

Technical characteristics:

  • Manufacturer: Giovenzana.
  • Series: TLP.
  • Reference: TLP6E1
  • mushroom-head diameter : 40mm.
  • Drive: Press and pull.
  • Box: Made of yellow plastic.
  • Maximum insulation voltage (Ui): 690Vac.
  • Nominal thermal intensity (Ith) 250Vac:
    • Emergency pushbutton: 16a
    • Monoblock pushbuttons: 10A
  • Frequency: 50/60Hz.
  • Plug base: Shucko type of 16a.
  • Cable input: M20
  • Weight: 500gr.
  • Degree of isolation: IP54.
  • Standard: IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 60947-5-4; IEC/EN 60947-5-5;

dimensions:

Dimensiones botonera TLP6E1 (1)

This type of button box, only supports spring-type contacts of the Giovenzana brand for the emergency pushbutton.

Dibujo modo conexionado bornas tipo resorte Giovenzana

Montaje botonera TLP6E1


For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
