End of stroke adjustable lever with 50mm roller Series VP

€11.81 Tax included

€9.76 tax excl.

Electric limit switch, 1NO+1NC contacts, adjustable vertical cam, large plastic roller. Made of thermoplastic resin very resistant to shocks.


Part number: VP191

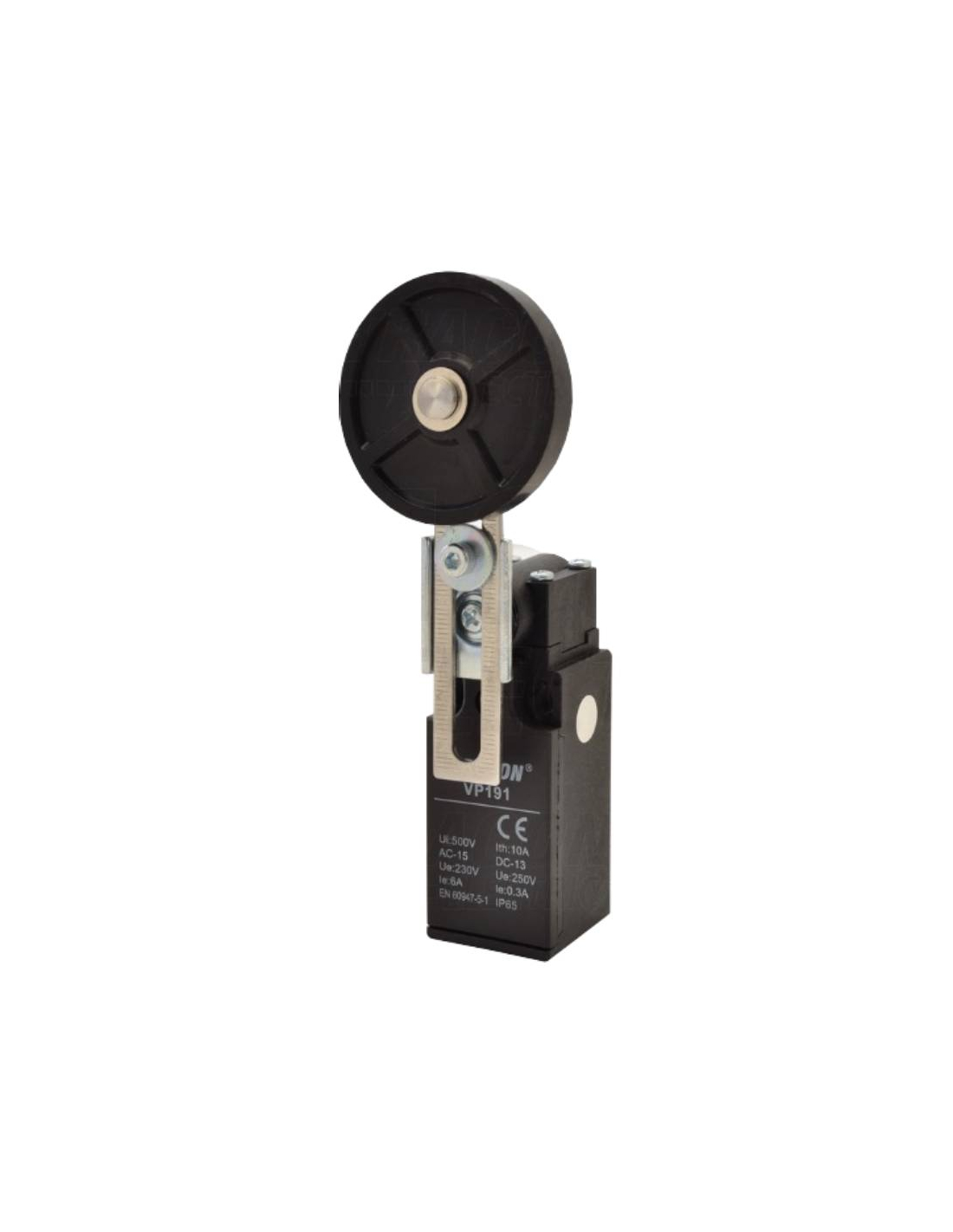

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Limit switch electric, mechanical position detector, made of highly impact-resistant thermoplastic resin. The limit switch incorporates a chamber with 2 electrical contacts, one open NO and the other closed NC. The limit switchis operated by means of an adjustable vertical cam ending in a large diameter plastic roller, which can be installed in any of the 4 directions to be operated.


Operating travel (mm)




Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Manufacturer's reference: VP127
  • Actuator type: adjustable cam + large plastic roller
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal intensity (Ith): 10A
  • Rated voltage of isolation: 500Vac
  • Mechanical life: 5x106 cycles
  • Material: Thermoplastic, plastic washer
  • Inlet thread: M20
  • Connection cable: 0.75 - 1.5mm2
  • Ambient operating temperature: -25ºC to +55ºC
  • Degree of protection: IP65
  • Standards: EN60947-5-1, EN60947-1



Dimensions:





Material for professional use, install in compliance with the regulations in force at the place of installation.
This component should not be used for safety or hazardous applications.
