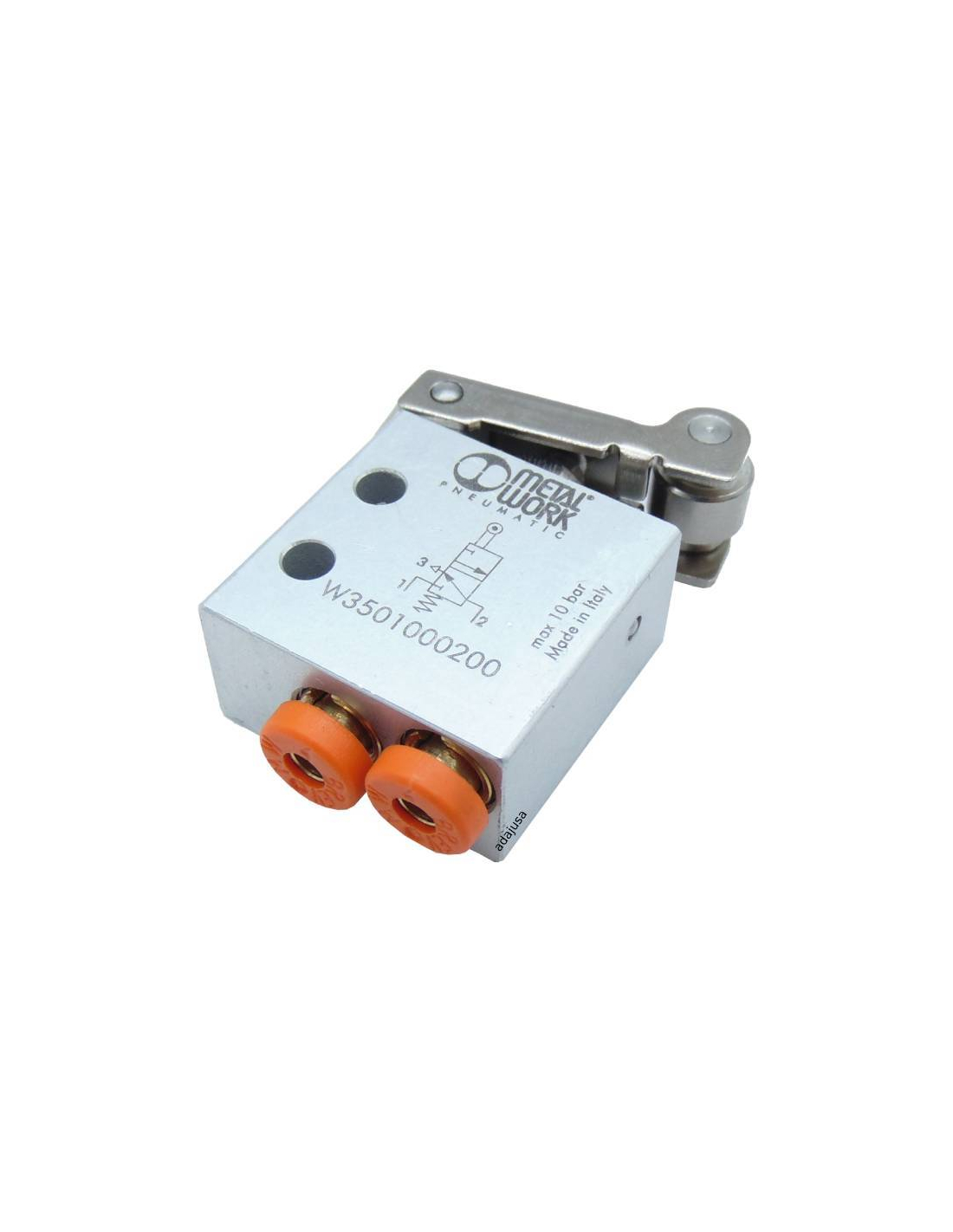

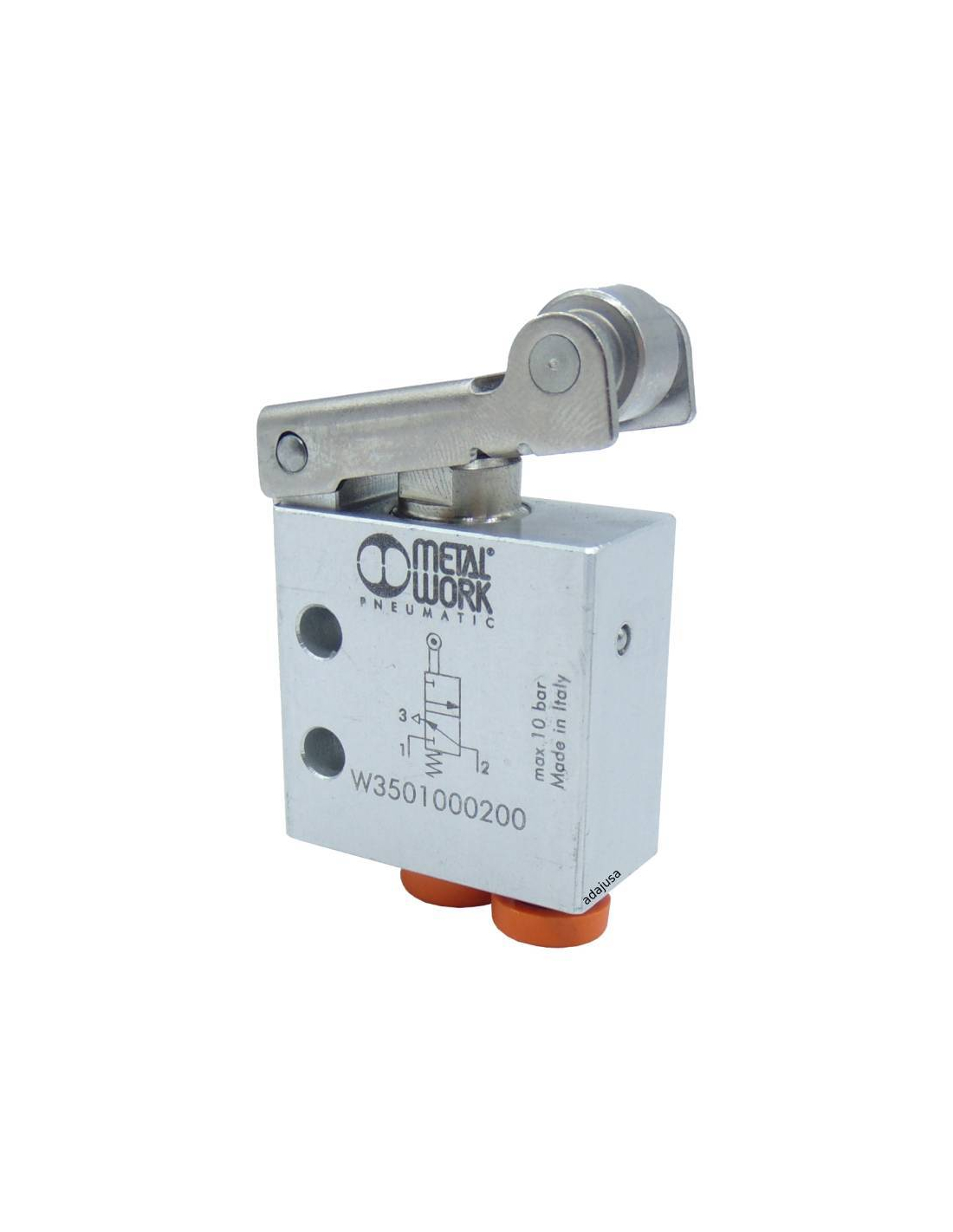

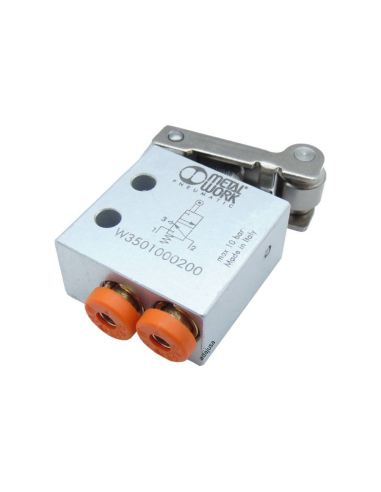

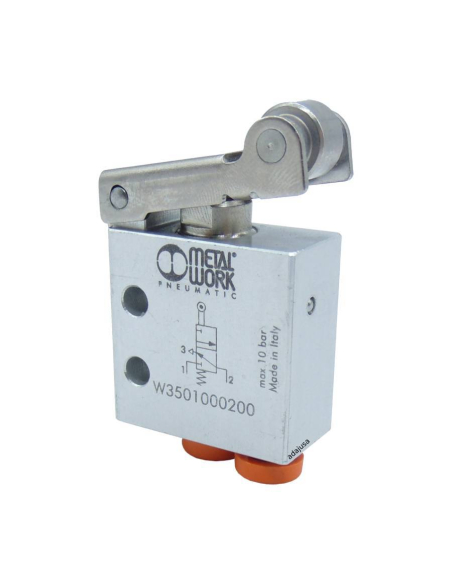

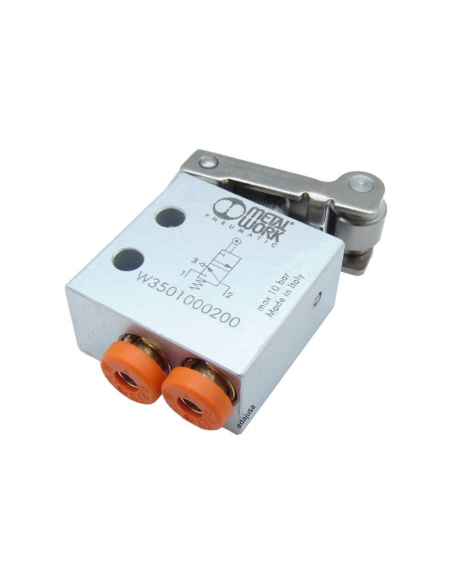

Limit Switch roller lever 3/2 NO diameter 4 rear fittings - Metal Work
Limit Switch roller lever 3/2 NO diameter 4 rear fittings - Metal Work

Limit Switch roller lever 3/2 NO diameter 4 rear fittings - Metal Work

€21.88 Tax included

€18.08 tax excl.

limit switch lever-operated tire with roller, fittings (axial connections) located at the rear for 4mm outer diameter tube. The valve type of the limit switch is normally open (NO).

Reference: W3501000201

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


limit switch roller lever drive tire, with integrated quick-connect fittings for 4mm outer diameter tube. The state of the valve at rest is normally open, that is, without pressing there is the presence of air in the salt, the air can pass, when it is activated, it does not let air through and there is no pneumatic pressure at the outlet.

Manufacturer: Metal Work

  • Minivalve: 3/2 Normally closed (NO).
  • Type of limit switch drive: lever with roller.
  • Manufacturer reference: W3501000210 - VME1-05 NO Ø 4
  • Reduced drive force.
  • Signal speed and pressure.
  • Material type: metallic.
  • Fittings: fast for tube diameter 4mm axial connection.
  • Installation: in any position.
  • Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
  • Working pressure (bar): 0.5 ÷ 10
  • Working temperature (°C): -10° ÷ +60
  • Nominal diameter (mm) 2.5
  • Conductance C (Nl/min · bar): 16.5
  • Critical ratio b (bar/bar): 0.03
  • Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
  • Capacity at 6 bar ΔP 1 bar (Nl/min): 60
  • Strut drive force at 6 bar (N): 8
  • Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the technical sheet by clicking on the "Attachments" tab
