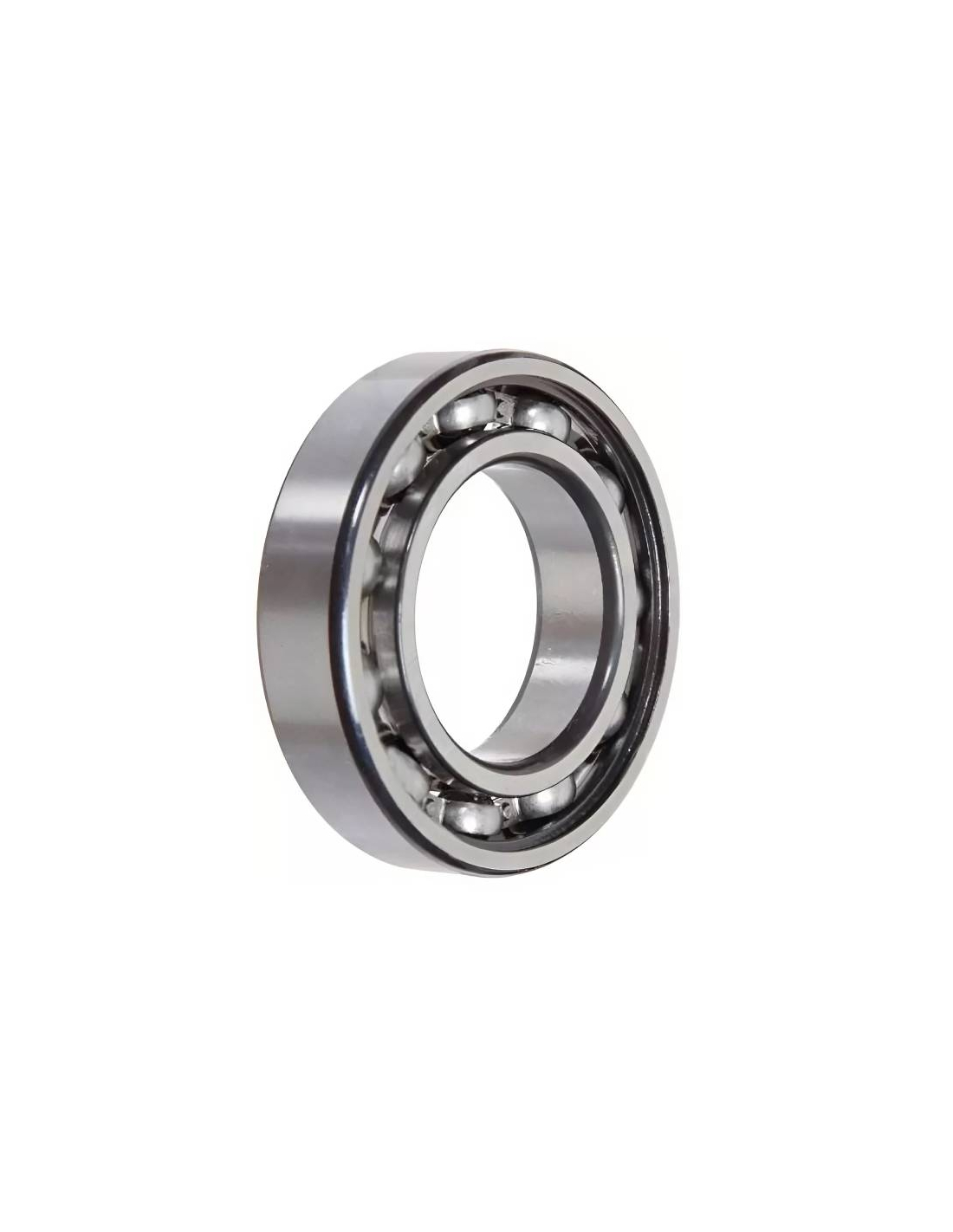

Bearing 7207 FAG 35x72x17mm

€31.62 Tax included

€26.13 tax excl.

7207 single row angular contact ball bearing,dimensions 35x72x17mm. Single row angular contact bearing, made of steel and cage for polyamide balls.

Brand fag.

Ref: 7207-B-XL-TVP

Marca FAG

No queries yet, leave the first!


Angular contact ball bearing, one row, 7207 series according to DIN 628-1, without any kind of opturing (open). Cage made of polyamide.

One-row angular contact ball bearings withstand high radial loads and axial forces in one direction, the contact angle of this series is 40o. The usual mounting of this type of bearings in combination with another bearing.

This type of bearings are suitable for operating temperatures from -30oC to +110oC.

Dimensions: .35x.72x17.

For other references or measures consult.

DibujoRodamientoAngularFAG

Features:

  • Manufacturer FAG.
  • Reference: 7207-B-XL-TVP.
  • Material: Tempered steel.
  • Cage: In polyamide
  • Dimension d: 35mm.
  • Dimension D: 72mm.
  • Dimension B: 17mm.
  • Shutter: No, bearing open on both sides.
  • Dynamo load capacity Cr (N): 28000.
  • Static load capacity C₀r (N): 19000.
  • Contact Angle: ἀ-40o
  • Limit speed ng (min⁻1): 11000.
  • Weight: 0.282Kg.
