Emergency stop push button diameter 40 (push-turn) Harmony XB5 - SCHNEIDER

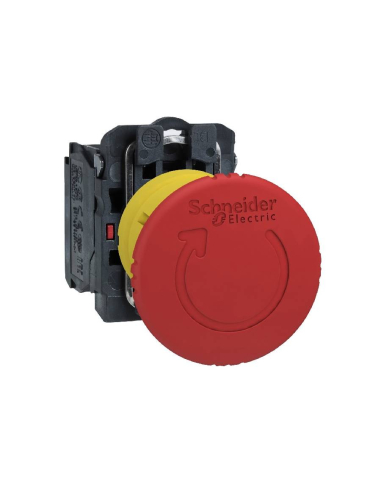

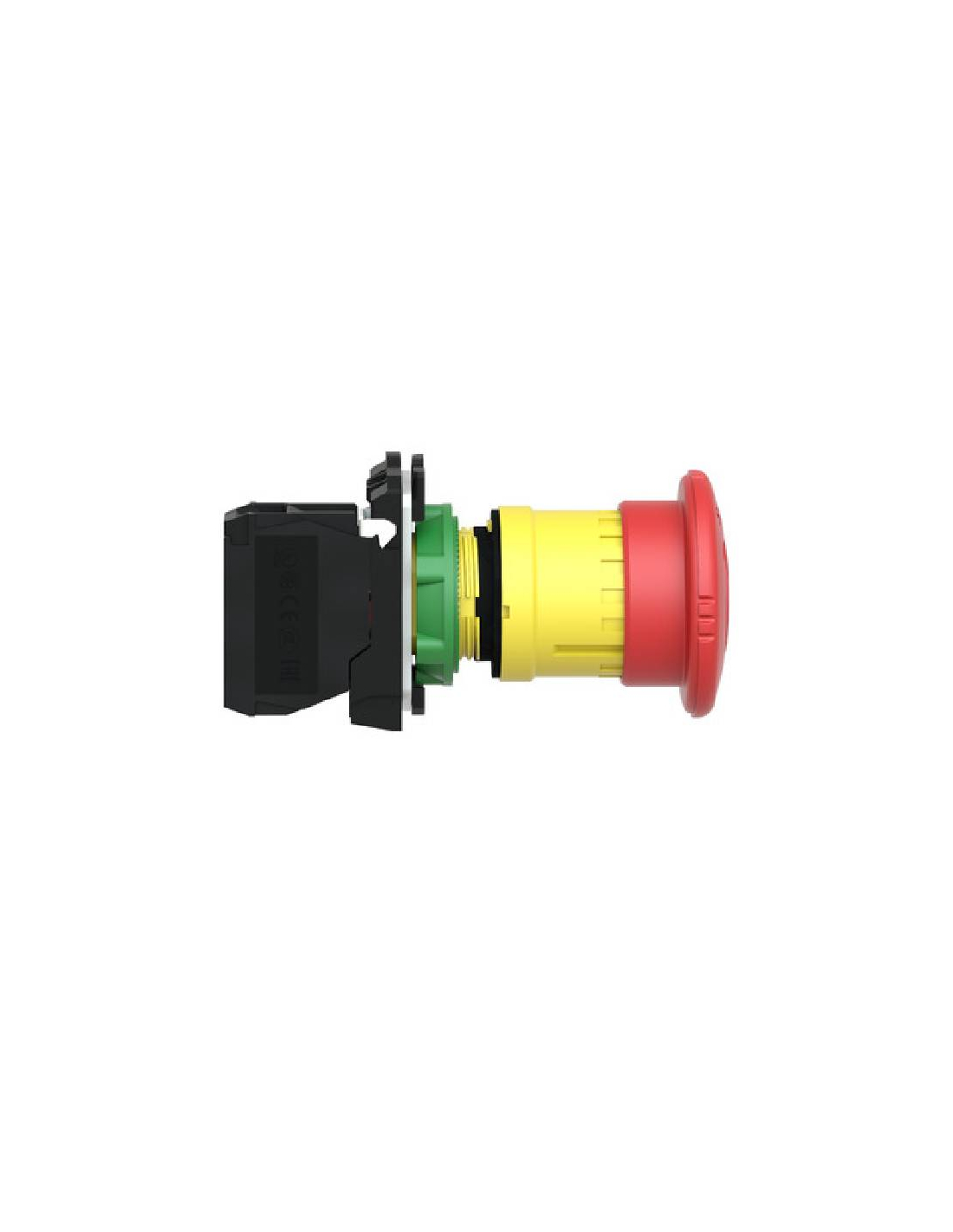

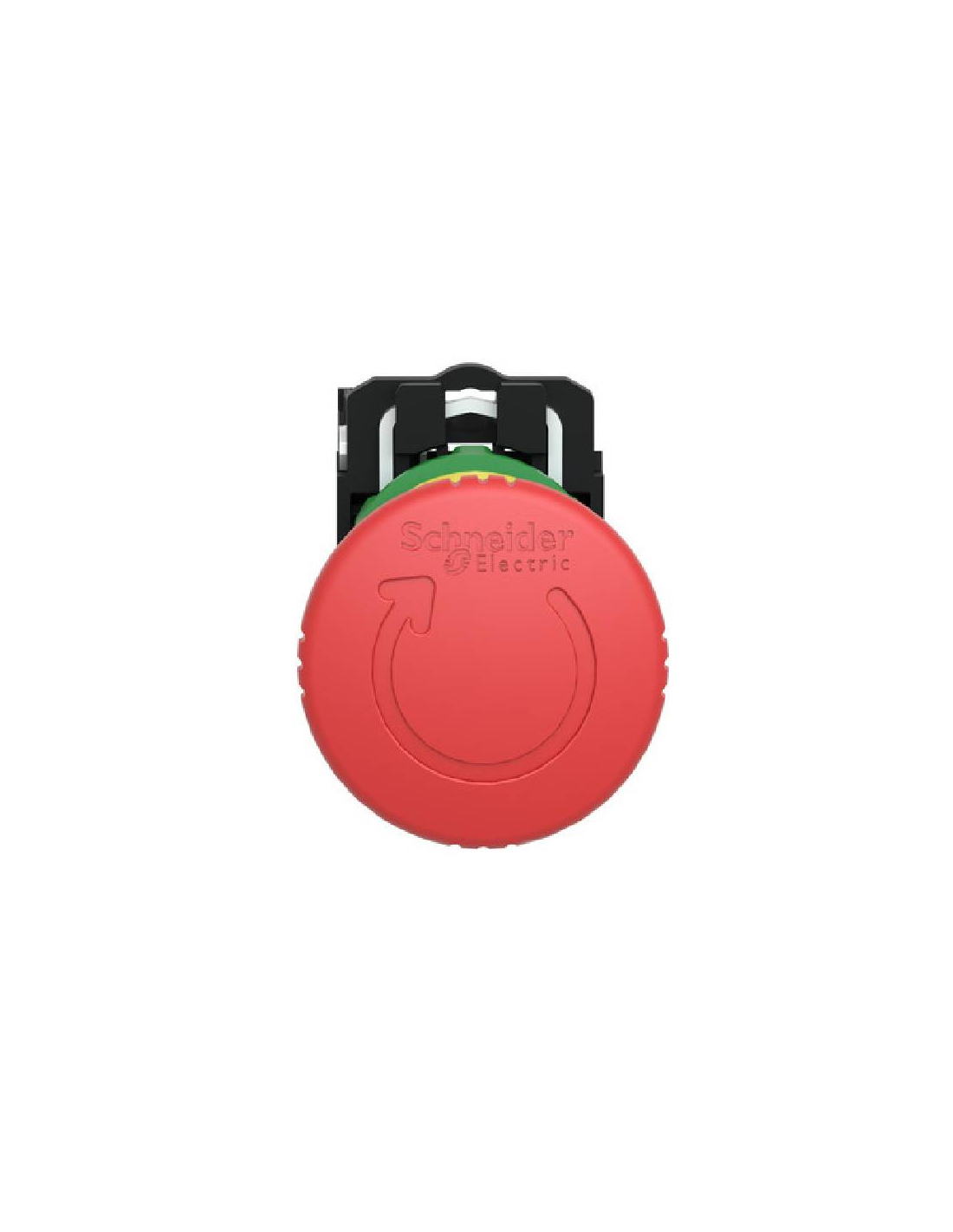

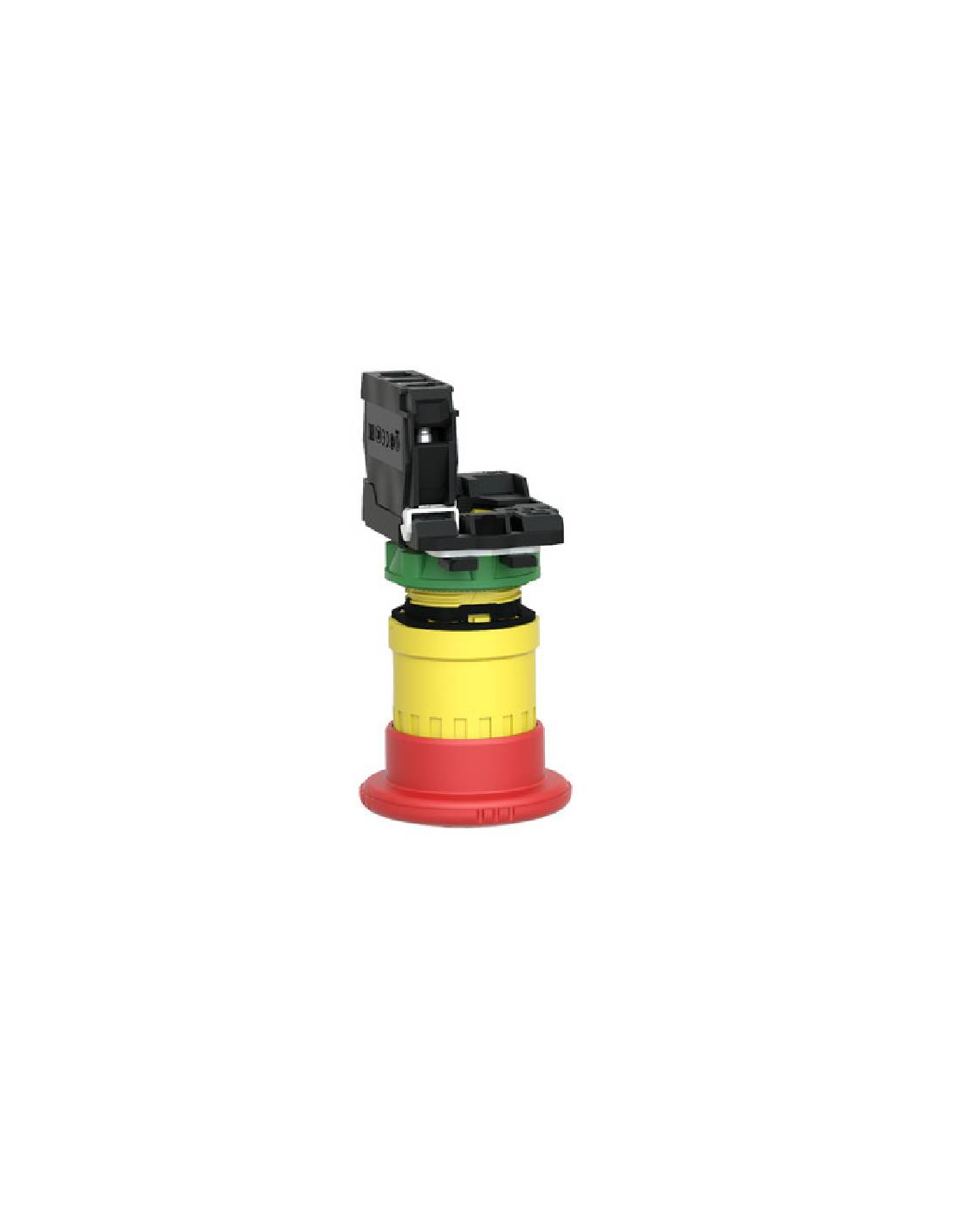

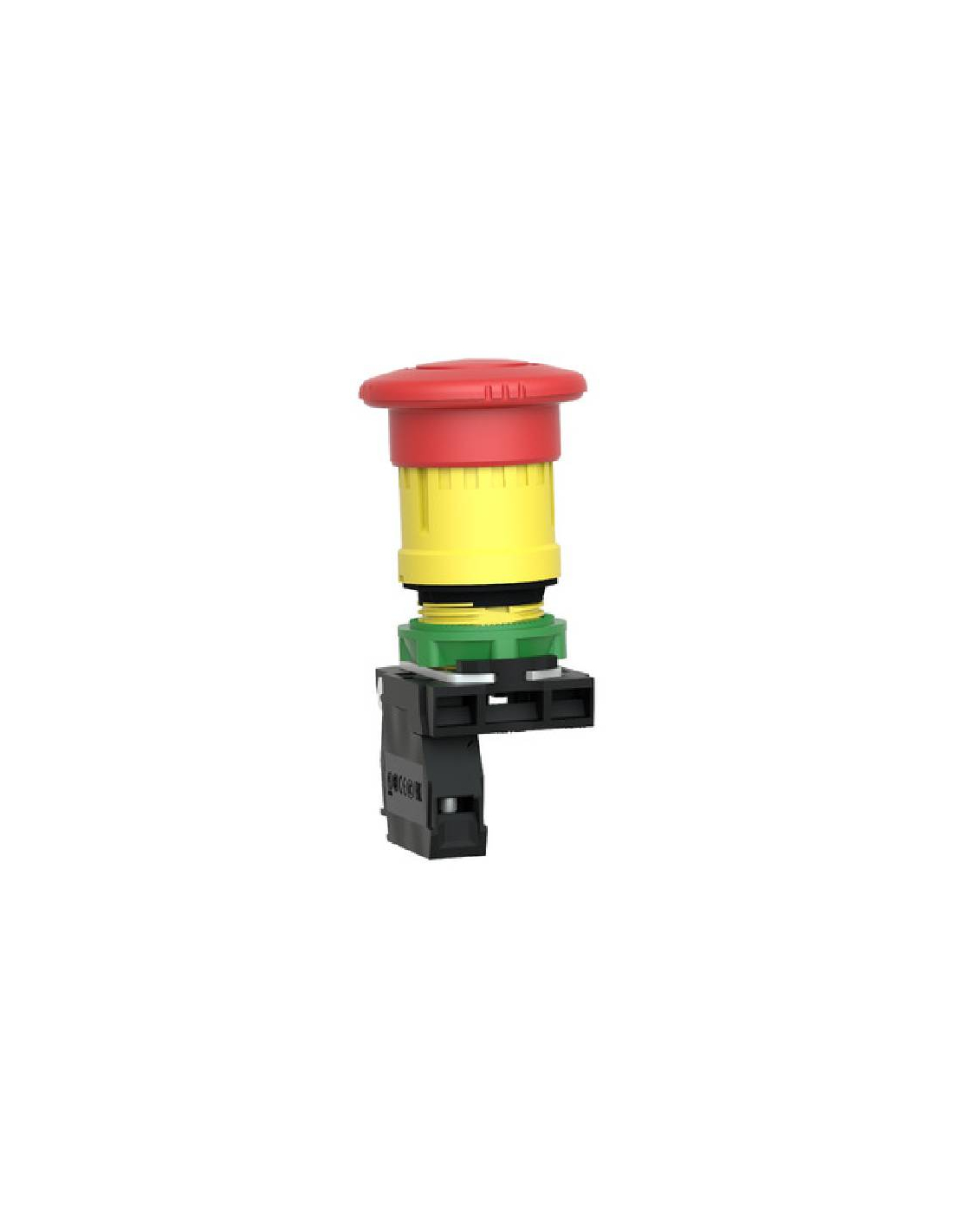

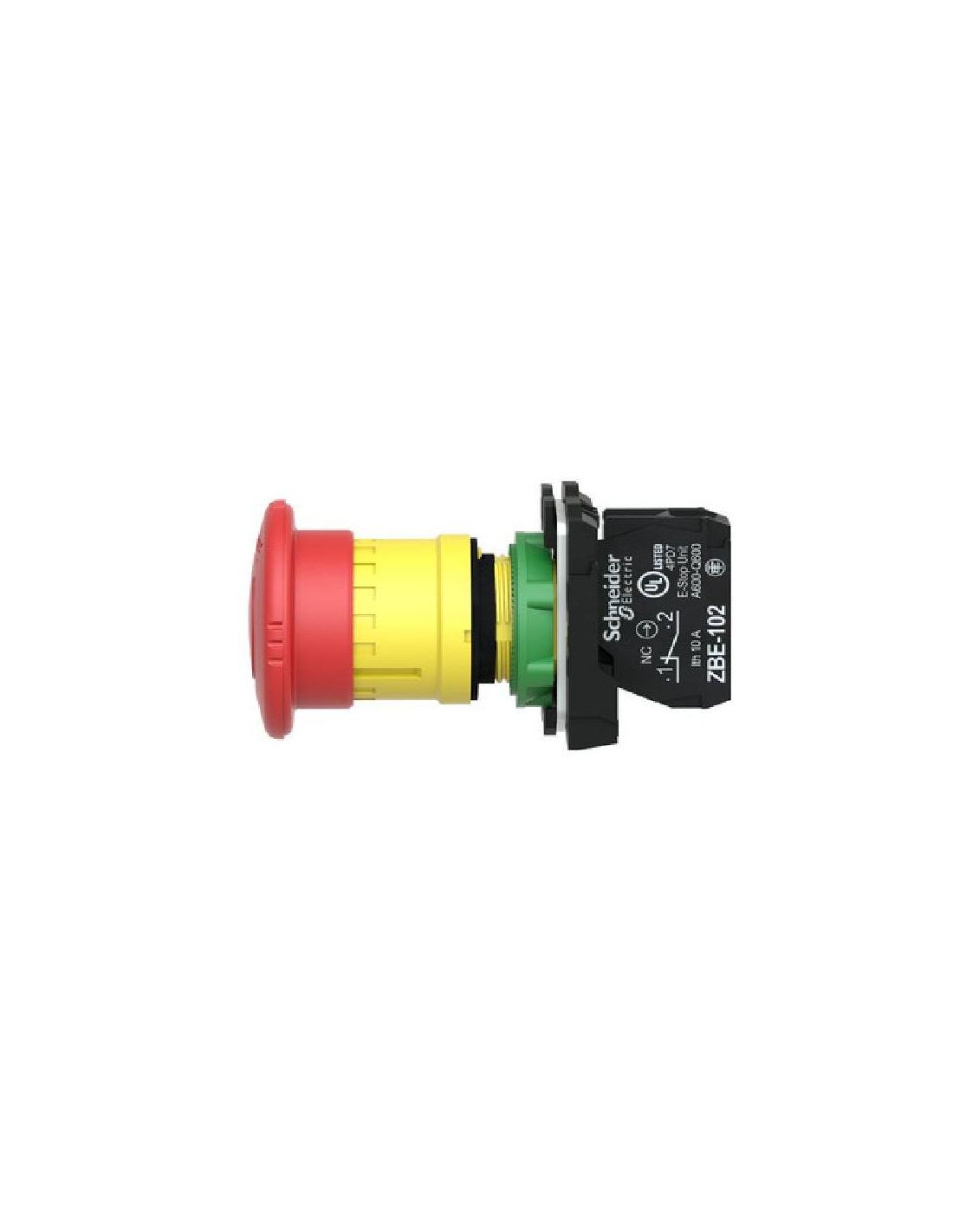

40 mm diameter plastic red mushroom emergency stop push button with 1 NC contact; push-turn mechanism, interlocking mechanical twist to unlock. Easily installed in standard 22 mm diameter die-cuts, it features an ergonomic interface for machine and process control.

Its design is highly resistant to impact, dust, water and vibration thanks to its IP66 degree of protection, making it suitable for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good chemical resistance or double electrical isolation. It is clearly distinguishable from a distance thanks to its light color and striking 40 mm mushroom shape.


Conforms to EN/IEC 60204-1, 60364-5-53, EN/ISO 13850 and the Machinery Directive 2006/42/EC.

The supply includes the complete pushbutton with a closed contact. Additional contacts can be added.

Features:

• Manufacturer: SCHNEIDER
• Part number: XB5AS8442
• HARMONY XB5 SERIES

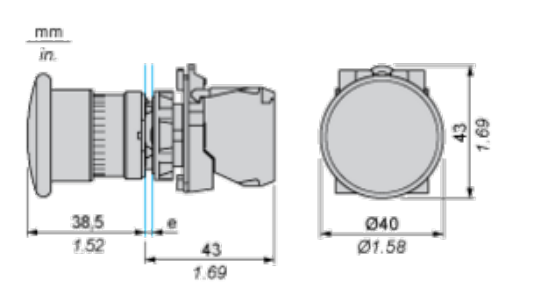

• Operator profile: Red Mushroom 40 mm, no marking
• Operator type: Activation and mechanical latching action
• Reset: Turn to release

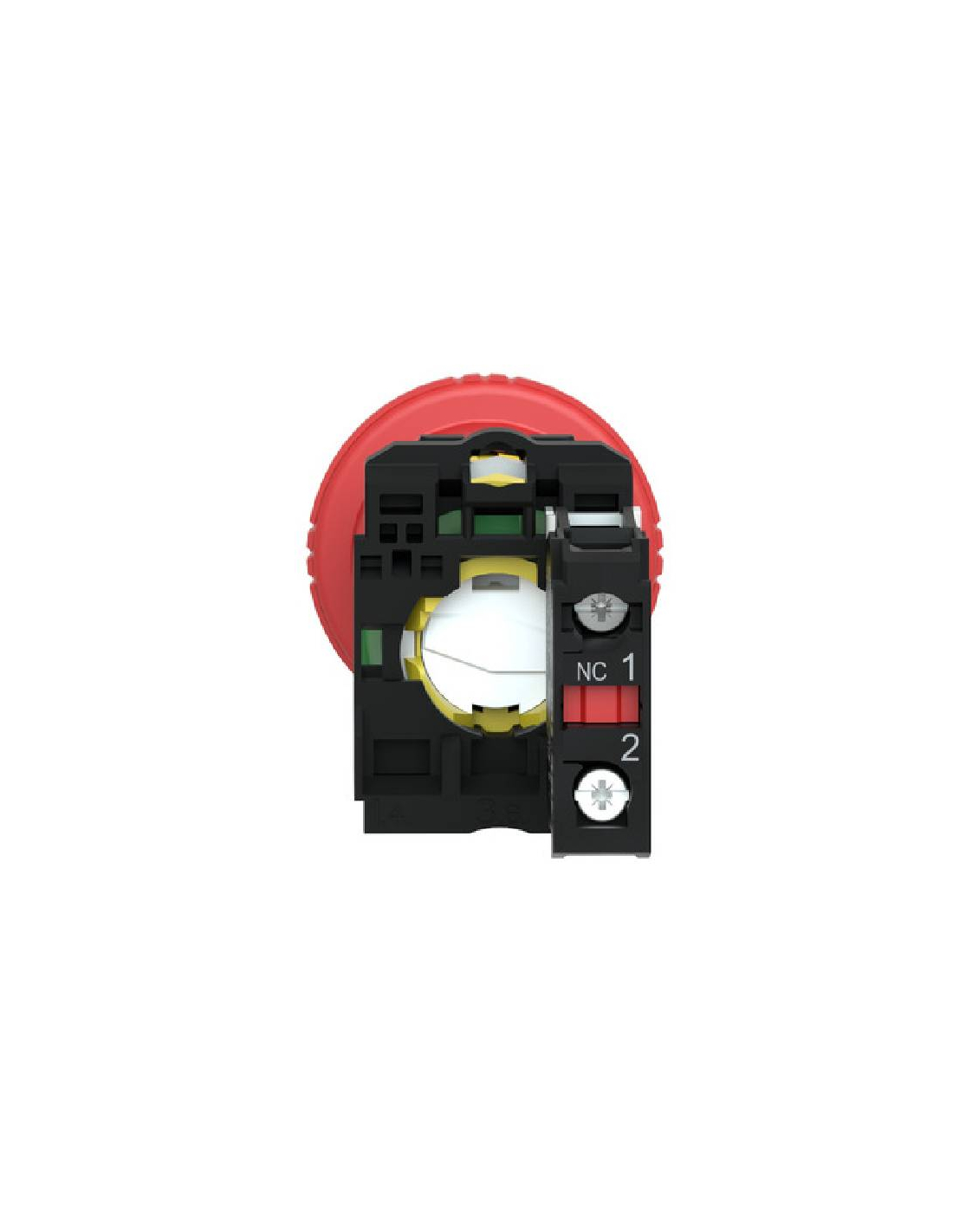

• Contact1 NC
• Contact operation: Slow break
• Mounting diameter: 22mm
• Short-circuit protection: 10A Cartridge fuse type gG
• Conventional thermal current: 10A
• Rated insulation voltage: 600V
• Surge withstand voltage: 6kV
• Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
• Bezel material: plastic
• Contact material: Ag/Ni
• Electrical durability: 10000000 cycles
• Mechanical durability: 10000000 cycles
• Operating temperature: -40...70C
• IP degree of protection: IP66
• IK protection degree: IK03

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
