€49.22 Tax included

€40.68 tax excl.

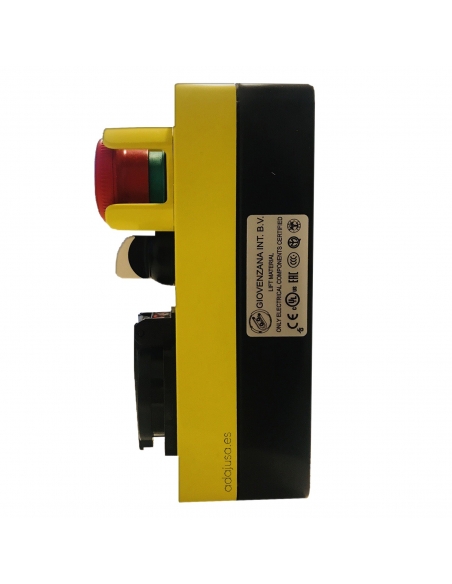

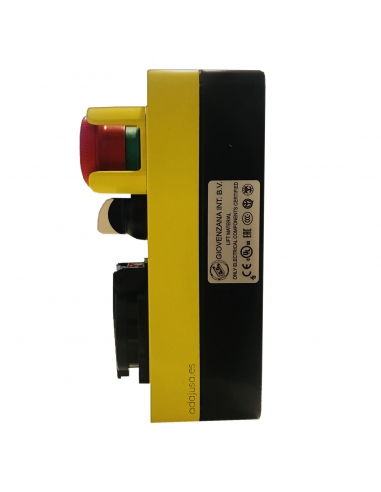

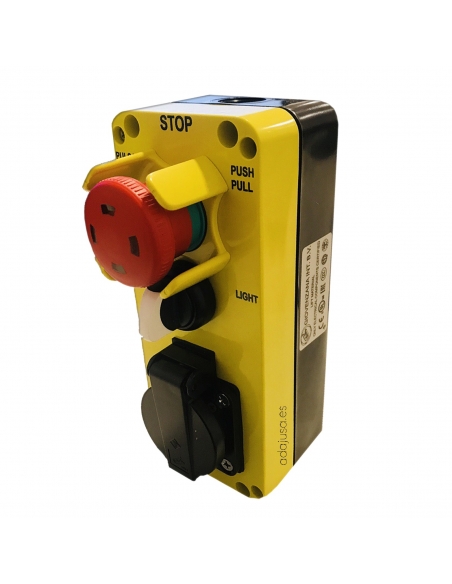

Button box mounted for moat and inspection of elevators.

It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements.

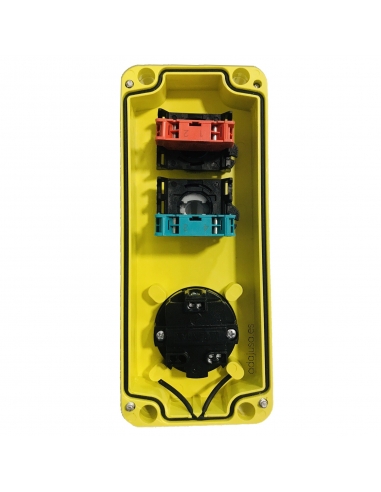

The supply includes:

  • box
  • Emergency pushbutton 1 NC
  • 1NA lighting switch
  • Schuko European 16a outlet

Reference: GM403/EU

logotipo giovenzana adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Button box for pit inspection in elevators, emergency stop for applications in elevators and general use. Of European manufacture, it complies with all the applicable regulations for this type of facilities.

The button is supplied fully equipped with the usual elements in this type of facility. It has a design that offers a lot of ease of use, easy installation and maintenance. Ip54 degree of protection.

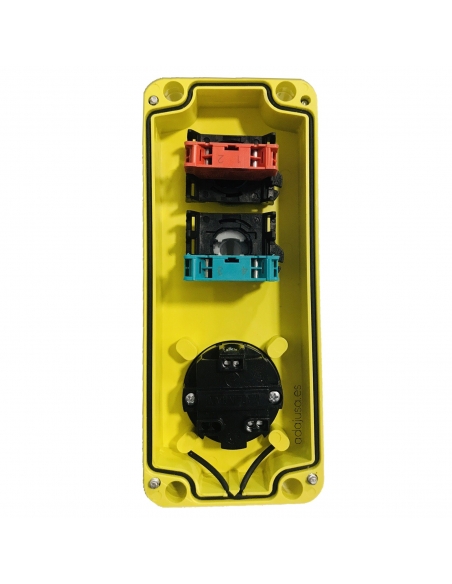

The pushbutton contacts have spring-type terminals for connecting the cables and are equipped with high-capacity contacts (Ith 16a). The emergency button has status indication and lock (press and throw).

The button complies with all the regulations for use in elevators, in safety applications and inspection in elevator pits (EN 81.20 - EN 81.50).

To complement the contacts included in the supply, you can add more blocks of contacts only of the Giovenzana brand, the references are:

  • 1 nc (NC), spring cable attachment: GIPCW01.
  • 1 no (NO), spring cable attachment: GIPCW10.
  • 1 nc (NC), screw cable attachment: GIPL004001.
  • 1 no (NO), screw cable fixation: GIPL004002.

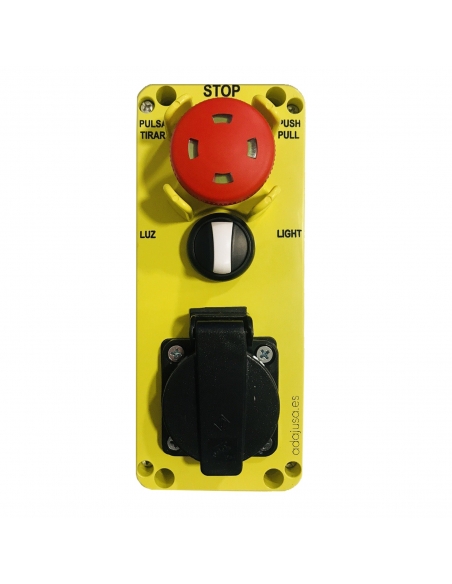

The supply includes:

  • Box in yellow
  • Ø40 emergency mushroom-head pushbutton, with interlocking and mechanical indication of condition. It has a positive opening nc (NC)
  • Switch for lighting, in yellow, with 1 no (NA)
  • Power outlet, plug base, schuko type 16a

specifications:

  • Manufacturer: Giovenzana
  • Series: GM
  • Reference: GM403/EU
  • mushroom-head diameter : 40mm
  • Drive: Press and pull
  • Box: Made of yellow plastic
  • Maximum insulation voltage (Ui): 690Vac
  • Nominal thermal intensity (Ith):
    • Pushbuttons: 16a.
    • Power outlet: 16a.
  • Frequency: 50/60Hz
  • Cable input: pre-eded for M20
  • Weight: 500gr
  • Degree of isolation: IP54
  • Standard: IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 60947-5-4; IEC/EN 60947-5-5; EN 81.20; IN 81.50

dimensions:

Dimensiones caja GM403aDibujo modo conexionado bornas tipo resorte Giovenzana

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
