Valve solenoid coil 110Vac 5VA T22 diameter 8 -...
Valve solenoid coil 110Vac 5VA T22 diameter 8 - Metal Work

Valve solenoid coil 110Vac 5VA T22 diameter 8 - Metal Work

€8.36 Tax included

€6.91 tax excl.

Coil for solenoid valve size 22mm, voltage 110Vca., with a consumption of 5VA, for cores of Ø8mm.

Valid for solenoid valves with 8mm actuator core.
Reference: W0215000021

Logotipo Metal Work

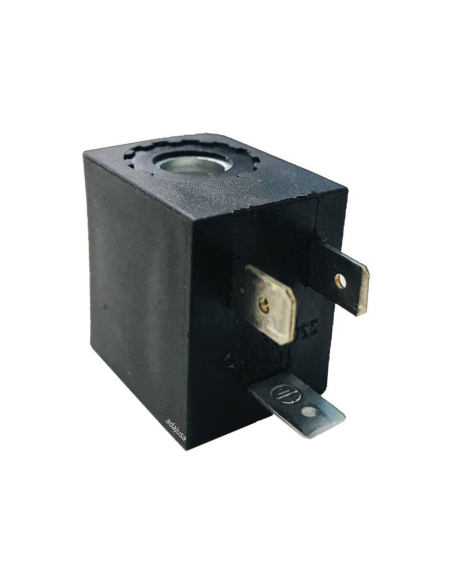

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Coil size 22mm for 110VAC voltage with a power of 5VA, suitable for solenoid valves with an actuator core diameter of 8mm.

Suitable for solenoid valves manufactured by:

  • Metal Work.
  • Airon.

Technical details:

  • Manufacturer: Metal Work.
  • Reference: W0215000021
  • Rated voltage: 110VAC.
  • Voltage tolerance: -10% +15%.
  • Nominal power: 5VA.
  • Starting power: 8VA.
  • Core diameter: 8.2mm (8mm).
  • Insulation type: F155.
  • Degree of protection: IP65 according to EN60529 with connector.
  • Temp. Max. coil at ED100%: 70oC for an ambient temperature of 20oC.
  • Regulation ATEX 94/9/EC, group II category 3GD.
  • Do not continuously expose atmospheric agents.

Dimensiones bobinas neumaticas
