Derivation terminal 1 pole 2x35-150mm² Gray

€11.91 Tax included

€9.84 tax excl.

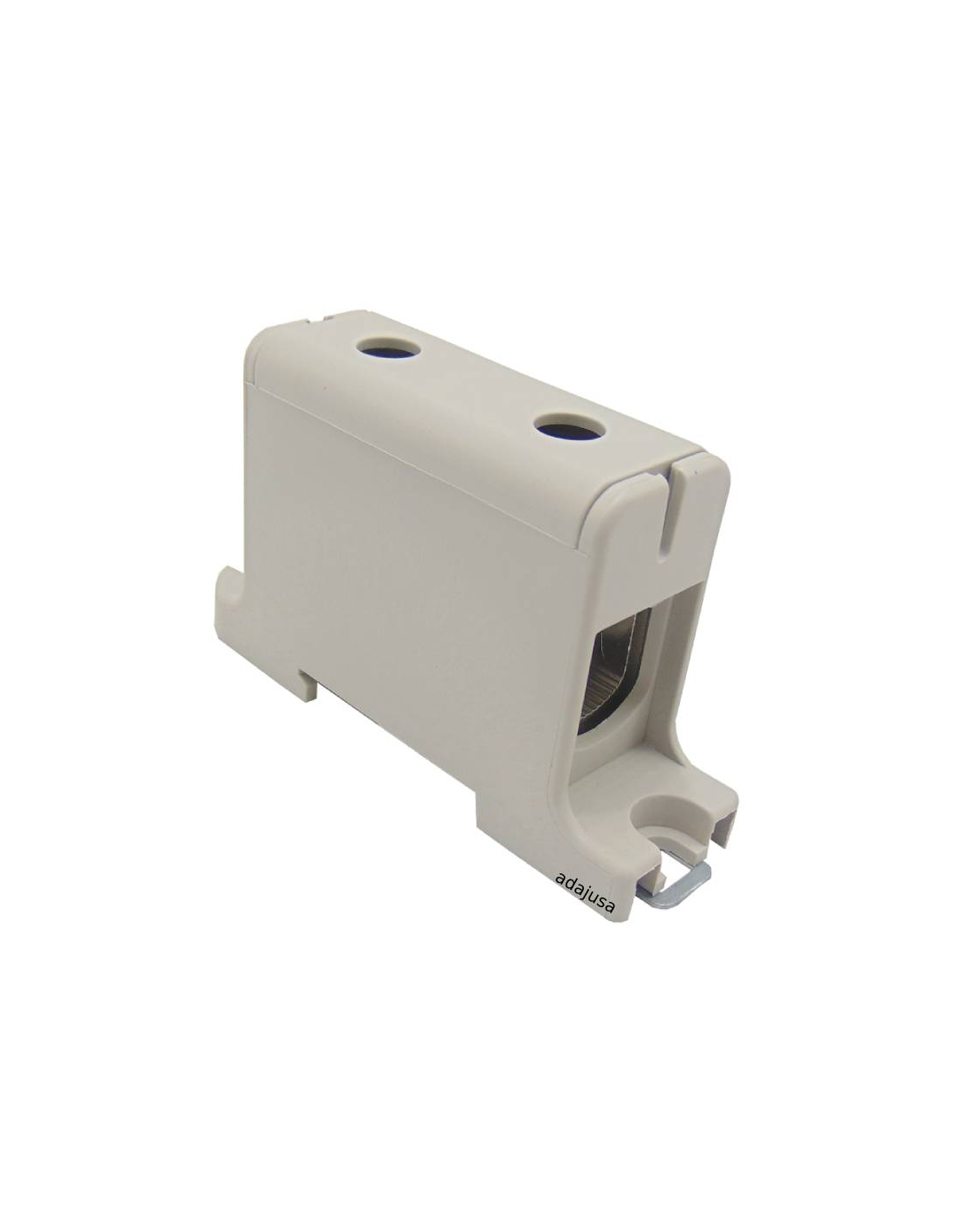

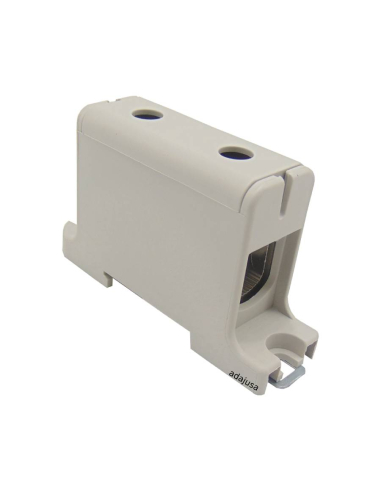

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors.


Reference: FLEAL-150/1


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


1-pole shunt terminal for 35 mm DIN rail mounting according to EN 60715. Suitable for connection of both copper and aluminum conductors.


Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: FLEAL-150/1
  • Rated current: Cu 320A / Al 290A
  • Maximum cable cross-section: Cu 35-150mm2 / Al 35-150mm2
  • Connection points: 2
  • Mounting: DIN rail
  • Terminal material: Tin-plated aluminum
  • Dimensions:

h: 72mm, h1: 95mm, b: 29mm, t: 60mm


Material for professional use, must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
