€157.12 Tax included

€129.85 tax excl.

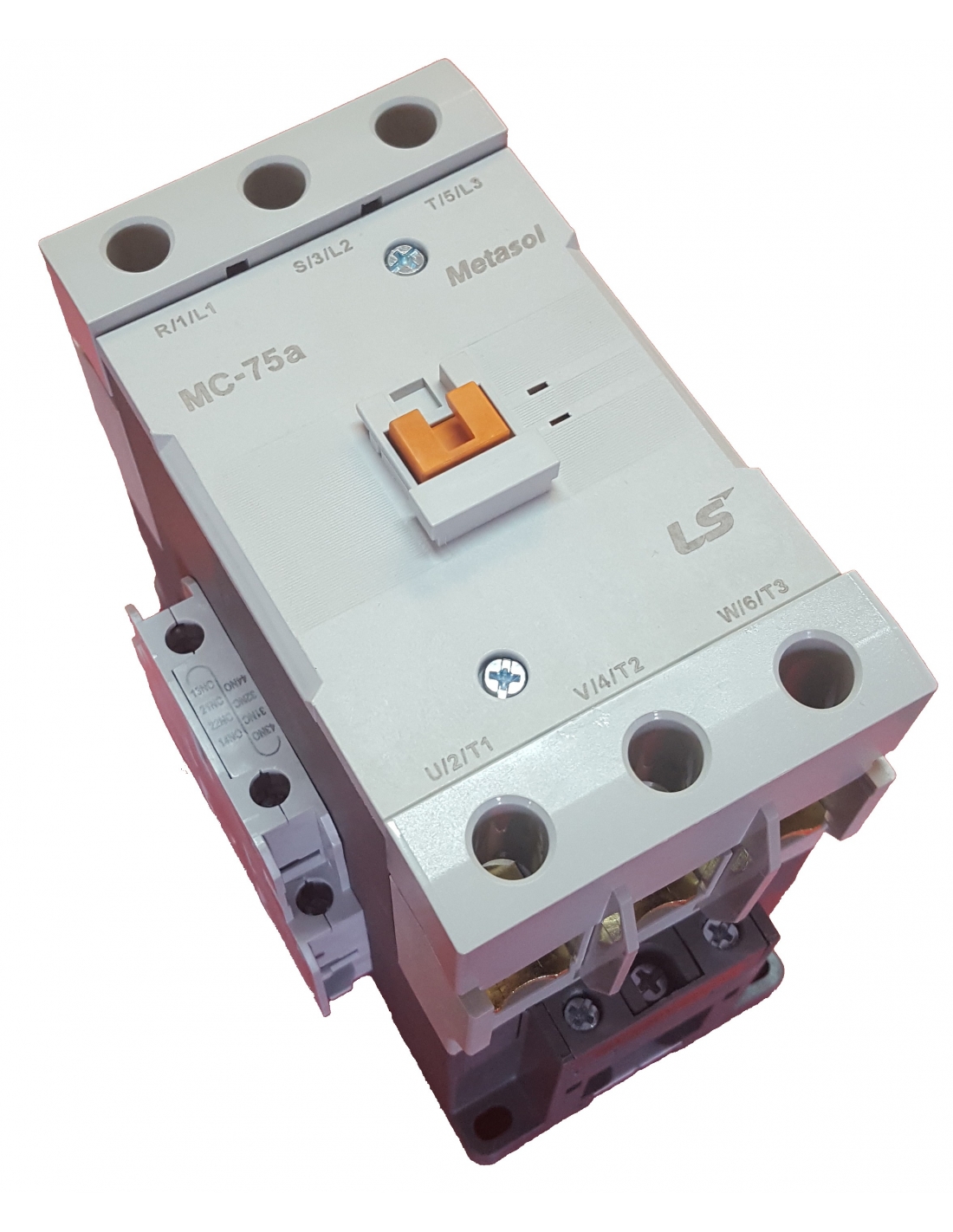

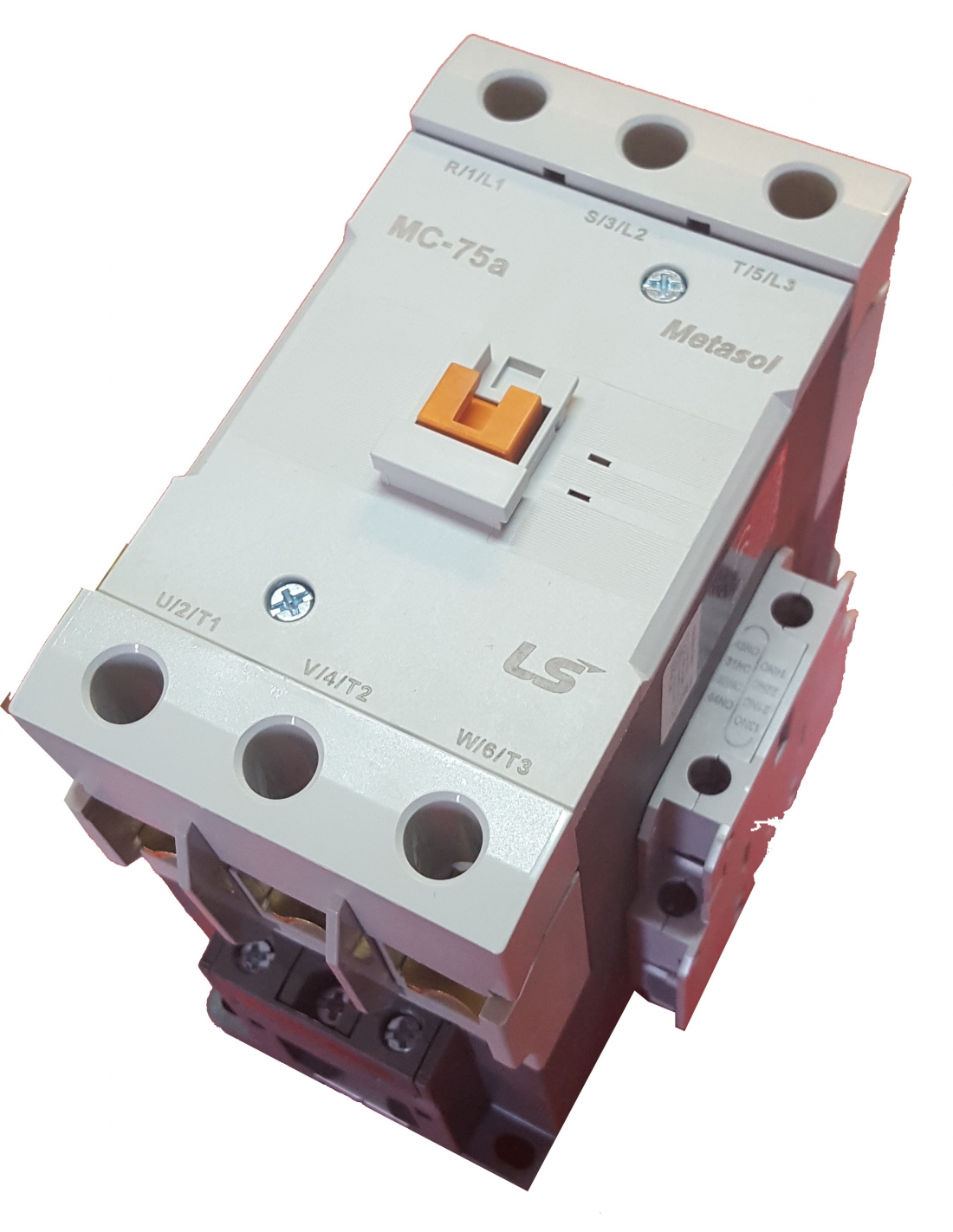

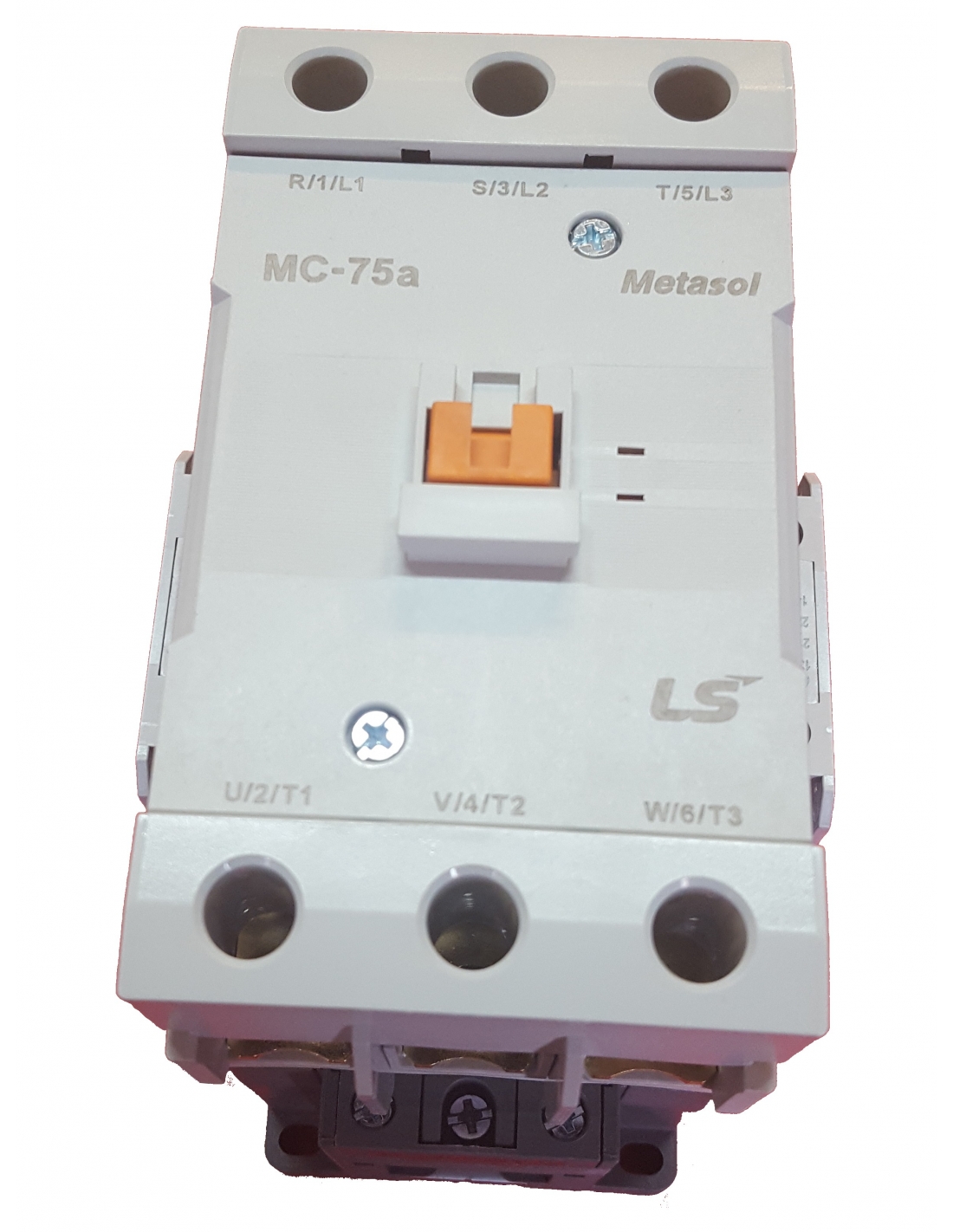

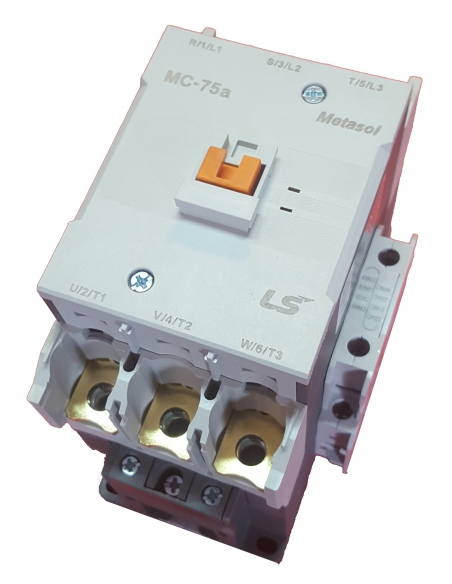

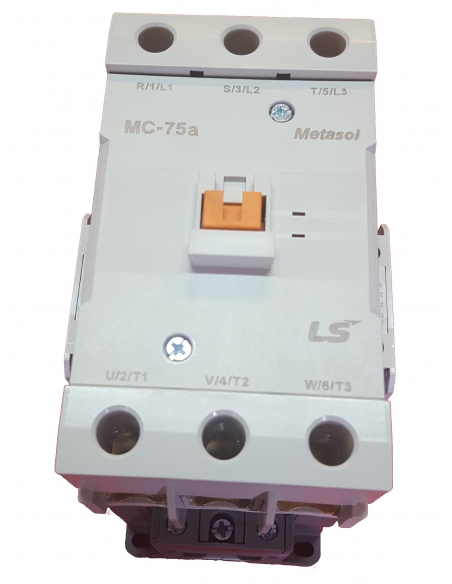

Electric three-phase contactor equipped with high capacity contacts for electric motor control, heating, lighting, ventilation,.., 3-pole with a current capacity of 85A AC3 category or 135A category AC1, with coil 220-230Vac, the contactor is equipped with two open auxiliary contacts (NA) and two other closed (NC)

Contactor Reference: MC-85a AC24Vac 3P

Esquema contactor 4 contactos auxiliares

Logotipo LS LG industrial Systems

No queries yet, leave the first!


Three-phase contactor (3 poles) of 85A in AC3 category or 135A in AC1 category, the contactor is equipped with high robust main contacts, suitable for demanding applications for electric motor control, heating systems, lighting, ventilation and general use. The contactor is equipped with an open auxiliary contact (NA) and a closed auxiliary contact (NC), located on the sides of the contactor. Fastening can be done by screws or by DIN rail.

Technical details:

  • Manufacturer: LS (LG Industrial Systems).
  • Contactor Reference: MC-85a AC230Vac 50/60Hz 2a2b 3P
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 230Vac.
  • Number of contactor poles: 3.
  • Assigned current for contactor in AC3: 85A.
  • Assigned current for contactor in AC1 (Ith): 135A.
  • Maximum power (kW) 380-400Vac: 45kW.
  • Maximum power (kW) 220-230Vac: 25kW.
  • Auxiliary contacts: 4 sides (2 open and 2 closed).
  • Minimum auxiliary contact current: cc 17V 5mA.
  • Hourly operations: 1800.
  • Mechanical durability: 12,000,000 operations.
  • Electrical dubability: 2,000,000 operations.
  • Weight: 1.93 Kg.
  • Dimensions: 94x140x174 mm.
