Motor circuit breaker 0.25 to 0.40 A GV2ME03 - Schneider
Motor circuit breaker 0.25 to 0.40 A GV2ME03 - Schneider
Motor circuit breaker 0.25 to 0.40 A GV2ME03 - Schneider

Motor circuit breaker 0.25 to 0.40 A GV2ME03 - Schneider

€39.76 Tax included

€32.86 tax excl.

Three-phase motor circuit breaker for electric motor protection. The regulation of the motor circuit breaker junctor is between 0.25 and 0.40 A. The installation of a circuit breaker motor circuit breaker makes it possible to prevent the breakdown of electric motors, both single-phase and three-phase, due to overloading, failure of a phase or short circuit.

Reference: GV2ME03

Esquema eléctrico disyuntor magnetotérmico

Logotipo Schneider

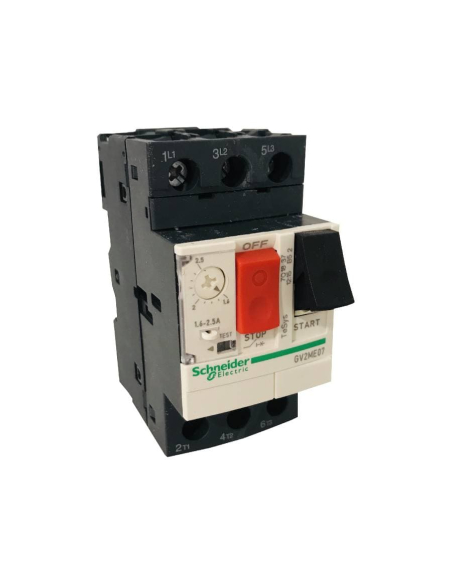

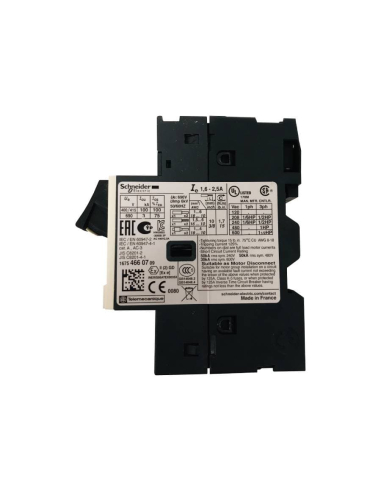

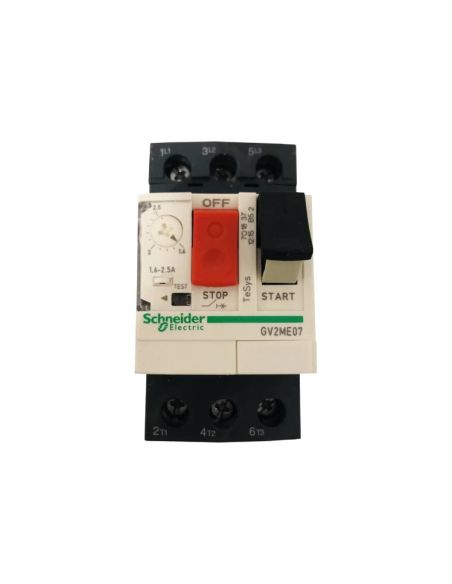

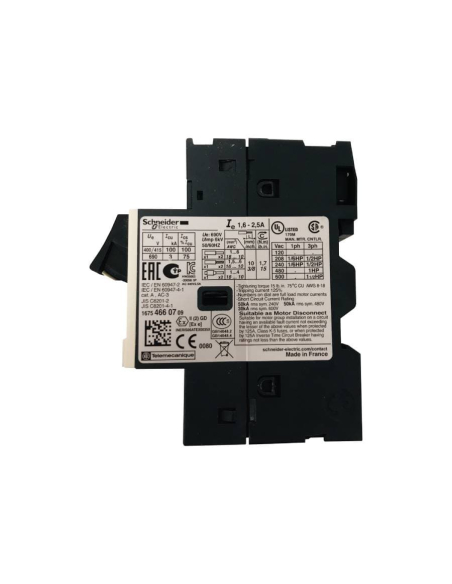

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Circuit breaker motor circuit breaker, for motor protection circuits by thermal disconnection (adjustable) or against short circuits (magnetic). Possibility of installation of front and side auxiliary contacts. High cutting capacity.

The installation of a circuit breaker motor circuit breaker in the power circuit of an electric motor, both three-phase and single-phase, allows to prevent breakdowns in the engine by overload, in three-phase motors, also allows to prevent the breakdown in the electric motor by loss of a phase, preventing the engine from working in 2 phases.

Types of protection:

  • Short circuits (Magnetic)
  • Overload (Thermal)
  • Phase failure


characteristics:

  • Manufacturer: Schneider Electric
  • Range: Tesys
  • Reference: GV2ME03
  • Maximum operating voltage (Ue): 690 V 50/60Hz
  • Adjustment range (Thermal Protection): 0.25 to 0.4 A
  • Magnetic firing intensity: 5A
  • Type of shot: Thermal and magnetic.
  • breaking capacity (Icu): 100kA
  • Engine power: 0.09kW at 400Vac
  • Poles: 3
  • Frequency: 50/60 Hz
  • Category of use: AC-3 according to IEC 60947-1. Category A according to IEC 60947-2
  • Drive: By pushbuttons
  • fastening: din-rail
  • Degree of protection: IP-20 IK-04
  • CE marking.
  • According to IEC 60947-2, 60947-4-1


For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
