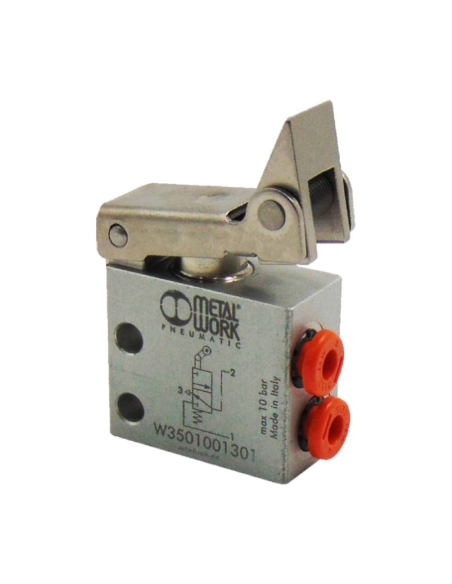

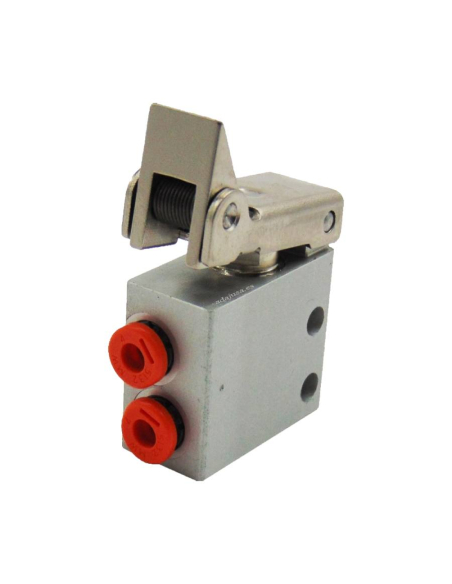

Limit Switch 3/2 NC one-way cam diameter 4 side fittings - Metal Work

limit switch one-way cam drive tire, with integrated quick-connect fittings for 4mm outer diameter tube. The state of the valve of the limit switch at rest is normally closed (NC), that is, without pressing there is no presence of air in the exit, the air can not pass, when it is activated, it lets the air pass and there is pneumatic pressure at the outlet.

• Manufacturer: Metal Work
• Valve type: 3/2 Normally closed (NC).
• Type of drive of the limit switch: By lever with unidirectional metal cam.
• Manufacturer reference: W3501001301 - VME2-03 NC Ø 4
• Material type: metallic.
• Reduced drive force.
• Signal speed and pressure.
• Mechanical drive.
• Fittings: fast for tube diameter 4mm axial connection.
• Installation: in any position.
• Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
• Working pressure (bar): 0.5 ÷ 10
• Working temperature (°C): -10° ÷ +60
• Nominal diameter (mm) 2.5
• Conductance C (Nl/min · bar): 16.5
• Critical ratio b (bar/bar): 0.03
• Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
• Capacity at 6 bar ΔP 1 bar (Nl/min): 60
• Strut drive force at 6 bar (N): 8
• Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
