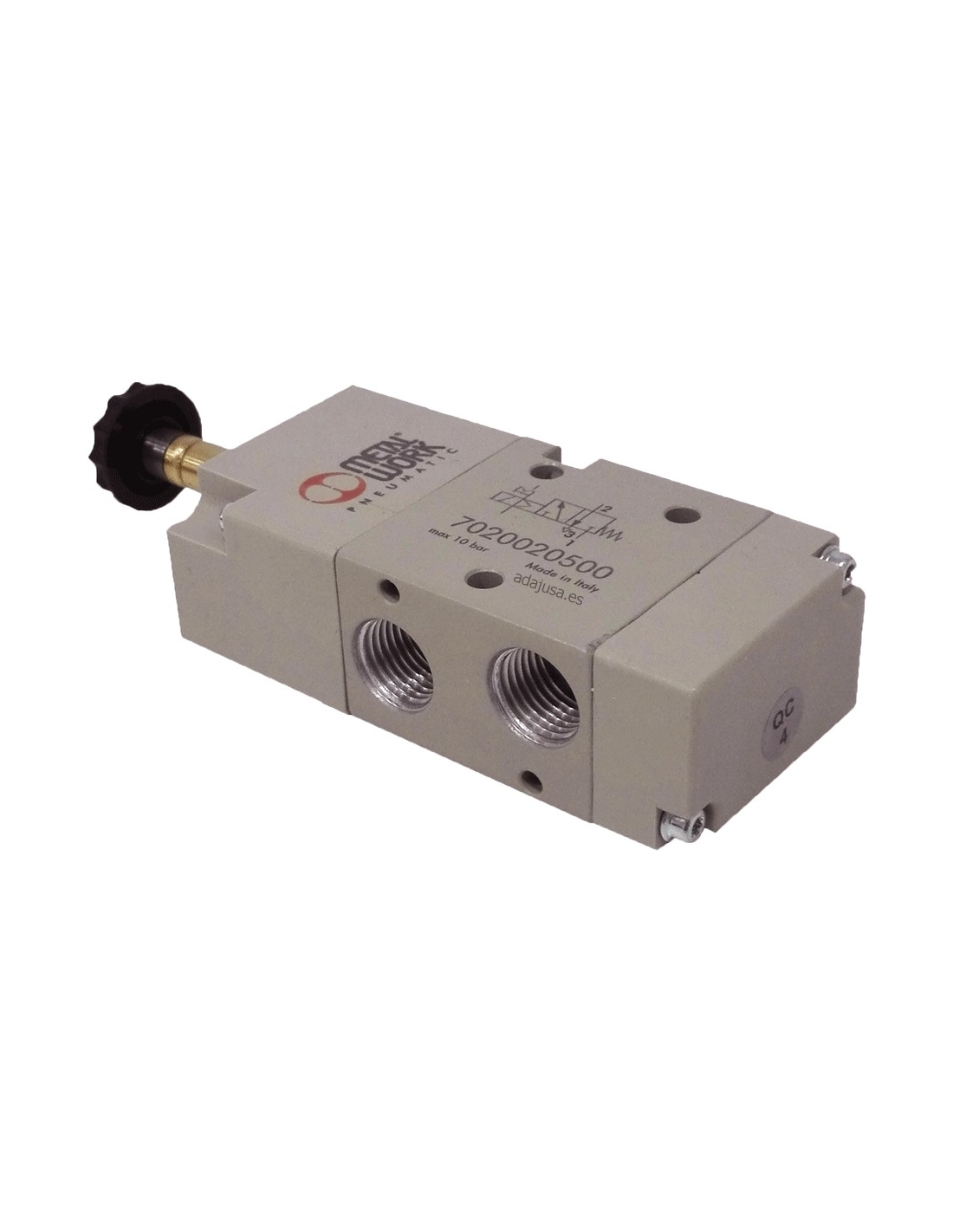

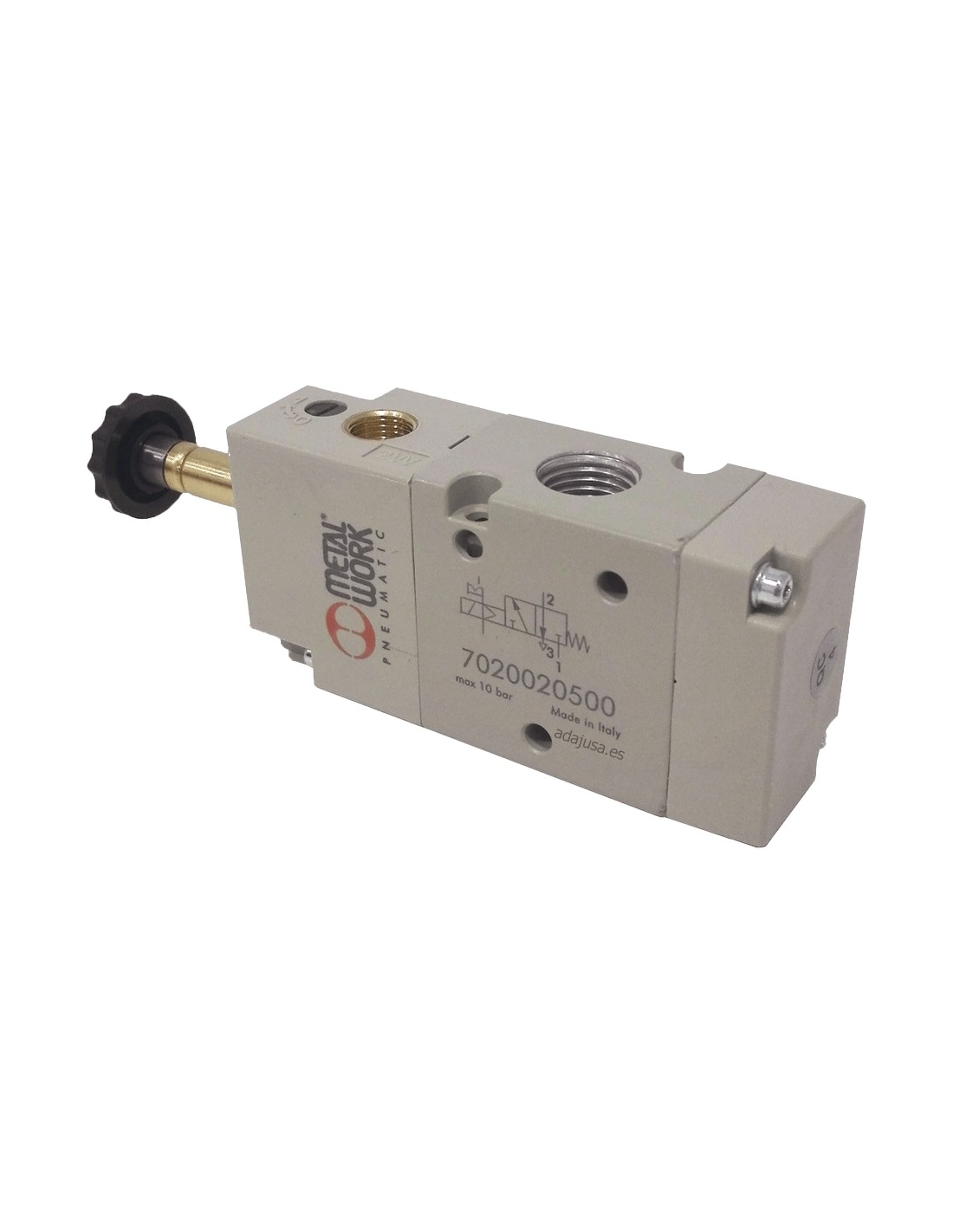

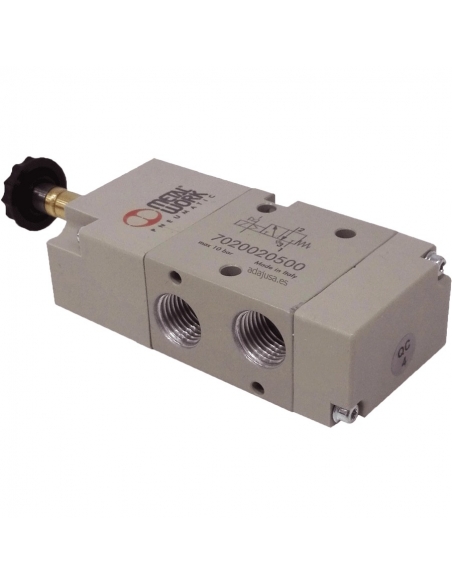

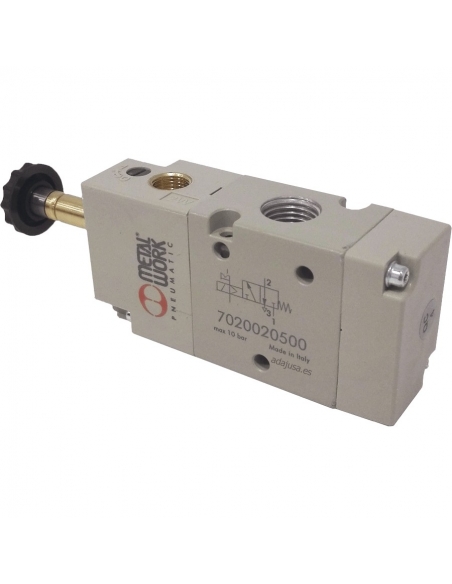

Solenoid valve 1/4 3 ways monostable assisted NC - Metal Work

€63.33 Tax included

€52.34 tax excl.

Solenoid valve 1/4" 3-way monostable assisted, closed (NC) pneumatic or industrial and general use applications. Supports coils (not included) of size 22mm with core of Ø8mm.

Reference: 7020020500

Esquema electrovalvula 3 vias asistida

Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


1/4 3-way monostable assisted pneumatic solenoid valve, usually closed (NC), for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with core of Ø8mm. The supply does not include coil or connector.

Made of aluminum, compact size and high air passage flow, short response time.

This electric valve, when assisted, needs pressure in the pilot intake, which is independent of the valve intakes, this allows to control fluids with very low pressures and even be used for vacuum applications.

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Manufacturer reference: 7020020500 - SOV 33 SES NC
  • Type: 1/4-5/2 Assisted Monostable
  • Thread: G 1/4"
  • Operating pressure: Empty ÷ 10 bar
  • Minimum working pressure for the pilot: 2.5 bar
  • Working temperature: -10°÷ +60°C
  • Nominal diameter: 5mm.
  • Capacity at 6 bar ΔP 0.5 bar: 400 Nl/min
  • Capacity at 6 bar ΔP 1 bar: 550 Nl/min
  • TRA/TRR at 6 bar: 15 ms / 35 ms
  • Coil voltage: 24VDC÷24VAC÷110VAC÷220VAC 50/60Hz
  • Weight: 0,152kg.
  • Manual drive: Yes.

Dimensiones electrovalvula 1/4 3/2 monoestable

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
