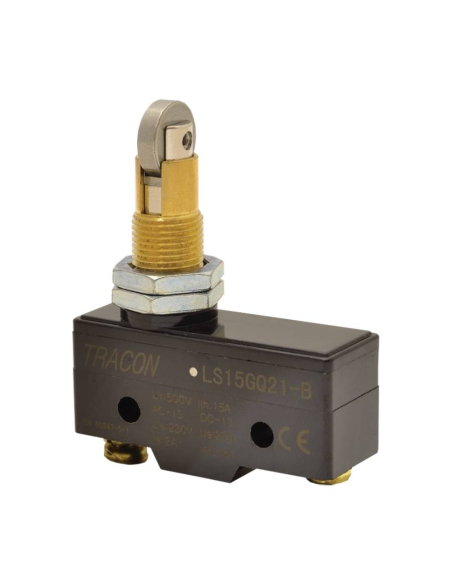

Cross roller limit switch (microswitch microswitch) Series LS15

€6.30 Tax included

€5.21 tax excl.

Limit switch operated by means of crossed metal roller (microswitch microswitch), 1 changeover contact (NO/NC). High load capacity.


Part number: LS15GQ21-B


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Actuating limit switch by means of crossed metal roller, 1 change-over contact (NO/NC). High load capacity. Lateral fixing by means of screws, electrical connection by means of threaded nuts. Possibility of adding protection cover (not included).



Operating travel (mm):




Technical characteristics

  • Manufacturer/Supplier: TRACON
  • Part number: LS15GQ21-B
  • Actuator type: High piston with crossed metallic pulley
  • Rated thermal current: 15A
  • Rated current: 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated voltage of isolation: 500V
  • Electrical contact: 1 Switched (NO/NC)
  • Material: Plastic
  • Connection cable: 0.5 - 1.5mm2
  • Mechanical life: 1x106 cycles
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP00
  • Standard: EN 60947-1, EN 60947-5-1



Dimensions:






Material for professional use, must be installed in compliance with the regulations in force at the place of installation

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

16 other products in the same category:

MFI.1 Giovenzana Series Micro Breaker - adajusa
End-of-race and position detectors

Micro breaker lever long roller MFI series.1

Giovenzana Internacional B.V.
GI-MFI.1
€2.52 (€2.08 tax excl.)
Micro drive switch by long roller lever. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.1 Representative image...
MZS1300 Giovenzana Microswitch - adajusa
End-of-race and position detectors

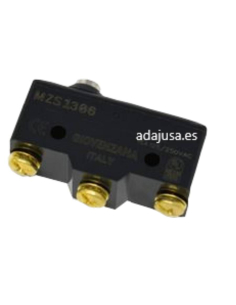

Pushbutton microswitch MZS1300 fine push button - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1300
€5.23 (€4.32 tax excl.)
Microswitch actuated by a fine and short pushbutton, without any actuator. 1 switched contact (NO/NC). High load capacity and sudden break. Manufactured under strict European regulations. Equipped with a type of shot that ensures a high degree of precision. Fast and reliable independent switching suitable for use in industrial and general purpose...
MFI.6 Giovenzana Series Microswitch - adajusa
End-of-race and position detectors

MFI series short lever micro breaker.6

Giovenzana Internacional B.V.
GI-MFI.6
€2.52 (€2.08 tax excl.)
Micro switch driven by short lever. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.6 Representative image for...
MFI.4 Giovenzana Series Micro Breaker - adajusa
End-of-race and position detectors

MFI series long lever micro breaker.4

Giovenzana Internacional B.V.
GI-MFI.4
1 review
€2.52 (€2.08 tax excl.)
Micro long lever drive switch. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.4 Representative image for...

Customers who bought this product also bought:

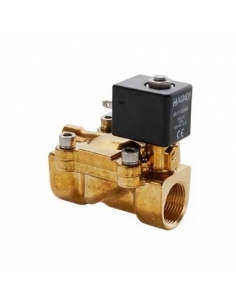

Solenoid valve fluids 1/2 2/2 closed 230VAC indirect drive - adajusa.es Solenoid valve fluids 1/2 2/2 closed 230VAC indirect drive - adajusa.es 2
  • Pack
Solenoid valves Process, fluid and domotic control

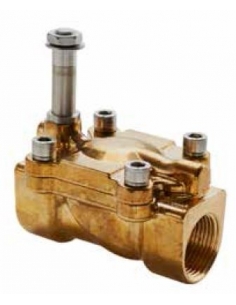

Solenoid valve fluids 1/2 2/2 closed 230V 11VA indirect drive D.12
