Three-phase motor 22Kw/3HP 400/690V 1500 rpm B3...
Three-phase motor 22Kw/3HP 400/690V 1500 rpm B3 foot flange cast iron case

Three-phase motor 22Kw/3HP 400/690V 1500 rpm B3 foot flange cast iron case

Check availability
€1,216.45 Tax included

€1,005.33 tax excl.

Three-phase electric motor 22kW (30HP) 400/690Vac., 1500 rpm (4 Poles), Flange B3 foot, cast housing. Manufactured under European IEC regulations.

  • Voltage: 400/690Vac 50/60Hz.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B3 foot.
  • Shaft diameter:48mm.
  • Power: 22Kw - 30hp.
  • Size: 180.
  • Energy efficiency: IE1.

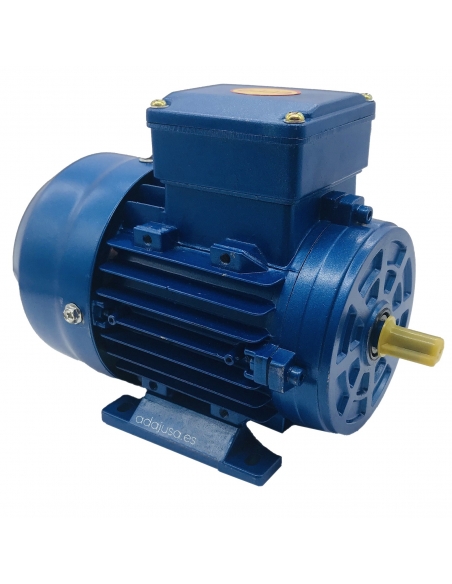

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 22kW (30hp) 400/690Vac 1500 rpm Flange B3 (foot). Made of cast iron.
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SSY-180L-4 B3 4/6
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1.
  • Voltage: 400/690 Vac., 50/60Hz.
  • Number of poles: 4
  • Revolutions: 1500 (1470) rpm.
  • Power: 22 Kw (30HP).
  • Current: 40.8/23.6A
  • Yield: 90.6%
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft diameter: Ø48mm.
  • Housing size 180 (180L).
  • Color: Blue.
  • Housing material: Cast iron.
  • Weight: 181Kg
  • CE marking.

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

B3 Hierro Imagen cotas To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
