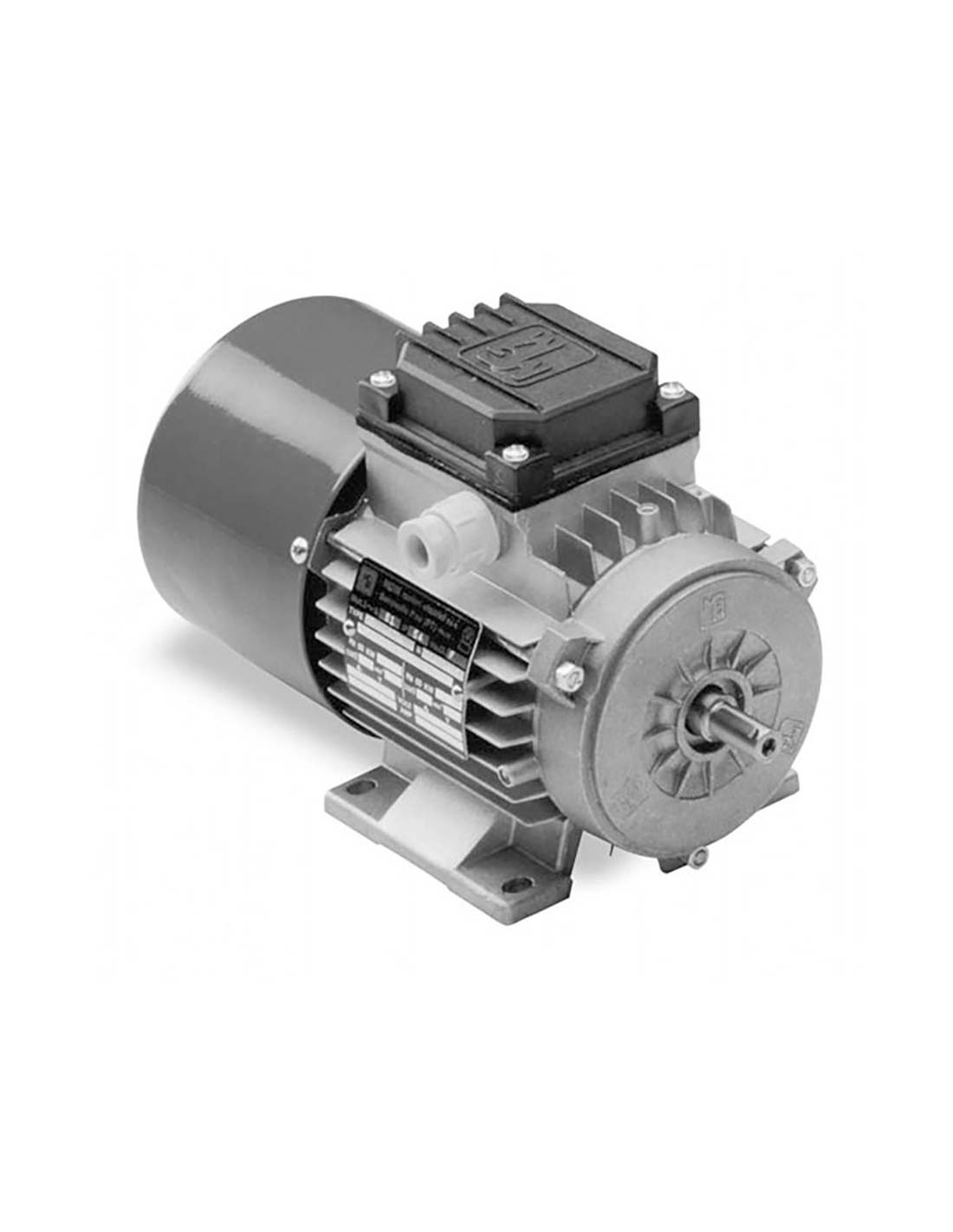

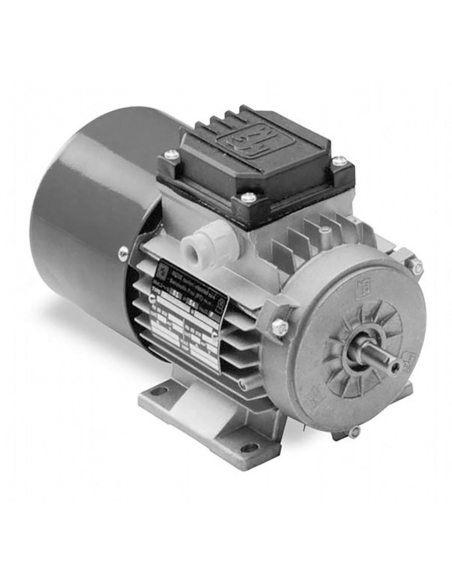

Three-phase motor 1.5Kw 2HP with brake 230/400V...
Three-phase motor 1.5Kw 2HP with brake 230/400V 1000 rpm Flange B3 foot - MGM

Three-phase motor 1.5Kw 2HP with brake 230/400V 1000 rpm Flange B3 foot - MGM

€967.53 Tax included

€799.61 tax excl.

Three-phase self-braking electric motor 1.5kW (2HP) 230/400Vac., 1000 rpm (6 Poles), Flange B3 foot, aluminum housing. Manufactured under European IEC regulations.

Manufacturer: MGM

Reference: BA100LA6 B3

  • Voltage: 230/400Vac 50/60Hz.
  • Power: 1.5Kw - 2HP.
  • Number of poles: 6.
  • Revs: 1000 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 28mm.
  • Size: 100
  • Energy efficiency: IE1.

Logotipo MGM

Out of stock

No queries yet, leave the first!


Electric motor with brake, three-phase 1.5kW (2HP) 230/400Vac 1000 rpm Flange B3 (foot). Made of aluminum cast iron, detachable foot.

Features:

  • Manufacturer: MGM
  • Manufacturer's Reference: BA100LA6 B3
  • Engine type: self-braking squirrel cage async
  • Power: 1.5 Kw (2HP)
  • Voltage: 230/400 Vac., 50/60Hz.
  • Number of poles: 6 Poles
  • Revolutions: 930 rpm
  • Intensity at 400V: 3.9A
  • Efficiency: IE1
  • Power factor: 0.71
  • Torque (Cn): 15.4 Nm
  • Brake type: electromagnetic.
  • Brake torque: 40 Nm.
  • Continuous service: S1.
  • Degree of protection: IP54
  • Fastening type: Flange B3 foot
  • Shaft Diameter: 28mm.
  • Housing size 100
  • Housing material: Aluminum.
  • Weight: 26 Kg.
  • CE marking.

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

DimensionesMotoresFreno
