Three-phase motor 7,5Kw 10hp with brake 400/690V 1500 rpm Flange B5 - MGM

Three-phase motor 7,5Kw 10hp with brake 400/690V 1500 rpm Flange B5 - MGM

€1,918.29 Tax included

€1,585.36 tax excl.

Three-phase self-braked electric motor 7.5kW (10hp) 400/690 Vac., 1500 rpm (4 Poles), Flange B5 , aluminum housing. Manufactured under European IEC regulations.

Manufacturer: MGM

Reference: BA132MA4 B5

  • Voltage: 400/690Vac 50/60Hz.
  • Power: 7.5Kw - 10hp.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B5.
  • Shaft diameter: 38mm.
  • Flange diameter:300mm.
  • PAM: 300/38
  • Size: 132
  • Energy efficiency: IE1.

Logotipo MGM

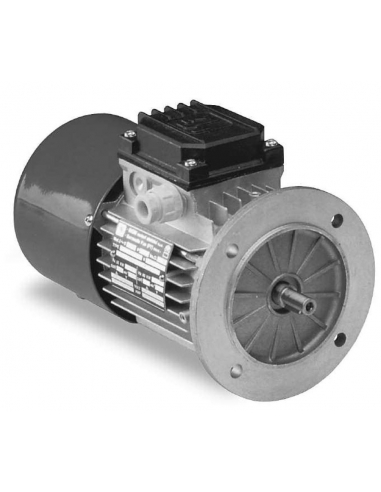

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Electric motor with brake, three-phase 7.5kW (10hp) 400/690Vac 1500 rpm Flange B5. Made of aluminum casting.

characteristics:

  • Manufacturer: MGM
  • Manufacturer's reference: BA132MA4 B5
  • Engine type: asynchronous self-driving squirrel cage
  • Power: 7.5 Kw (10hp)
  • Efficiency: IE1
  • Voltage: 400/690Vac., 50/60Hz.
  • Number of poles: 4 Poles
  • Revs: 1435 rpm
  • Intensity at 400V: 14.8A
  • Power factor: 0.84
  • Torque (Cn): 49.91 Nm
  • Brake type: electromagnetic.
  • Brake torque: 100 Nm.
  • Continuous service: S1.
  • Degree of protection: IP54
  • Fastening type: Flange B5
  • Shaft diameter: Ø38mm.
  • Flange diameter: Ø300mm
  • PAM flange: 300/38
  • Housing size 132
  • Housing material: Aluminum.
  • Weight: 75 Kg.
  • CE marking.

For more information, other powers or executions consult.
As in any asynchronous electric motor, it is mandatory to install a motor circuit breaker to avoid overload damage.

DimensionesMotoresFreno
For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
