Three-phase motor 0.18Kw 0.25HP with brake...

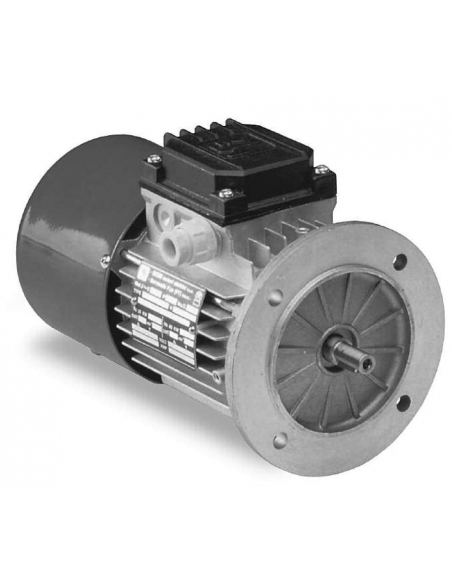

Three-phase motor 0.18Kw 0.25HP with brake 230/400V 3000 rpm Flange B5 - MGM

Three-phase motor 0.18Kw 0.25HP with brake 230/400V 3000 rpm Flange B5 - MGM

€402.10 Tax included

€332.31 tax excl.

Three-phase self-braking electric motor 0.18kW (0.25HP) 230/400Vac., 3000 rpm (2 Poles), Flange B5, aluminum housing. Manufactured under European IEC regulations.

Manufacturer: MGM

Reference: BM63A2 B5

  • Voltage: 230/400Vac 50/60Hz.
  • Power: 0.18Kw - 0.25HP.
  • Number of poles: 2.
  • Revs: 3000 rpm.
  • Flange: B5.
  • Shaft diameter: 11mm.
  • Flange diameter: 140mm.
  • PAM: 140/11
  • Size: 63
  • Energy efficiency: IE1.

Logotipo MGM

No queries yet, leave the first!


Electric motor with brake, three-phase 0.18kW (0.25HP) 230/400Vac 3000 rpm Flange B5. Made of aluminum cast iron, detachable foot.

Features:

  • Manufacturer: MGM
  • Manufacturer's Reference: BM63A2 B5
  • Engine type: self-braking squirrel cage async
  • Power: 0.18 Kw (0.25HP)
  • Voltage: 230/400 Vac., 50/60Hz.
  • Number of poles: 2 Poles
  • Revolutions: 2800 rpm
  • Intensity at 400V: 0.60A
  • Efficiency: IE1
  • Power factor: 0.69
  • Torque (Cn): 0.61 Nm
  • Brake type: electromagnetic.
  • Brake torque: 5 Nm.
  • Continuous service: S1.
  • Degree of protection: IP54
  • Clamping type: Flange B5
  • Shaft Diameter: 11mm.
  • Flange Diameter: 140mm
  • PAM Flange: 140/11
  • Housing size 63
  • Housing material: Aluminum.
  • Weight: 4.5 Kg.
  • CE marking.

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

DimensionesMotoresFreno
