V-belt pulley 67mm 1 slot for shaft diameter 19mm type SPA
V-belt pulley 67mm 1 slot for shaft diameter 19mm type SPA

V-belt pulley 67mm 1 slot for shaft diameter 19mm type SPA

€23.06 Tax included

€19.06 tax excl.

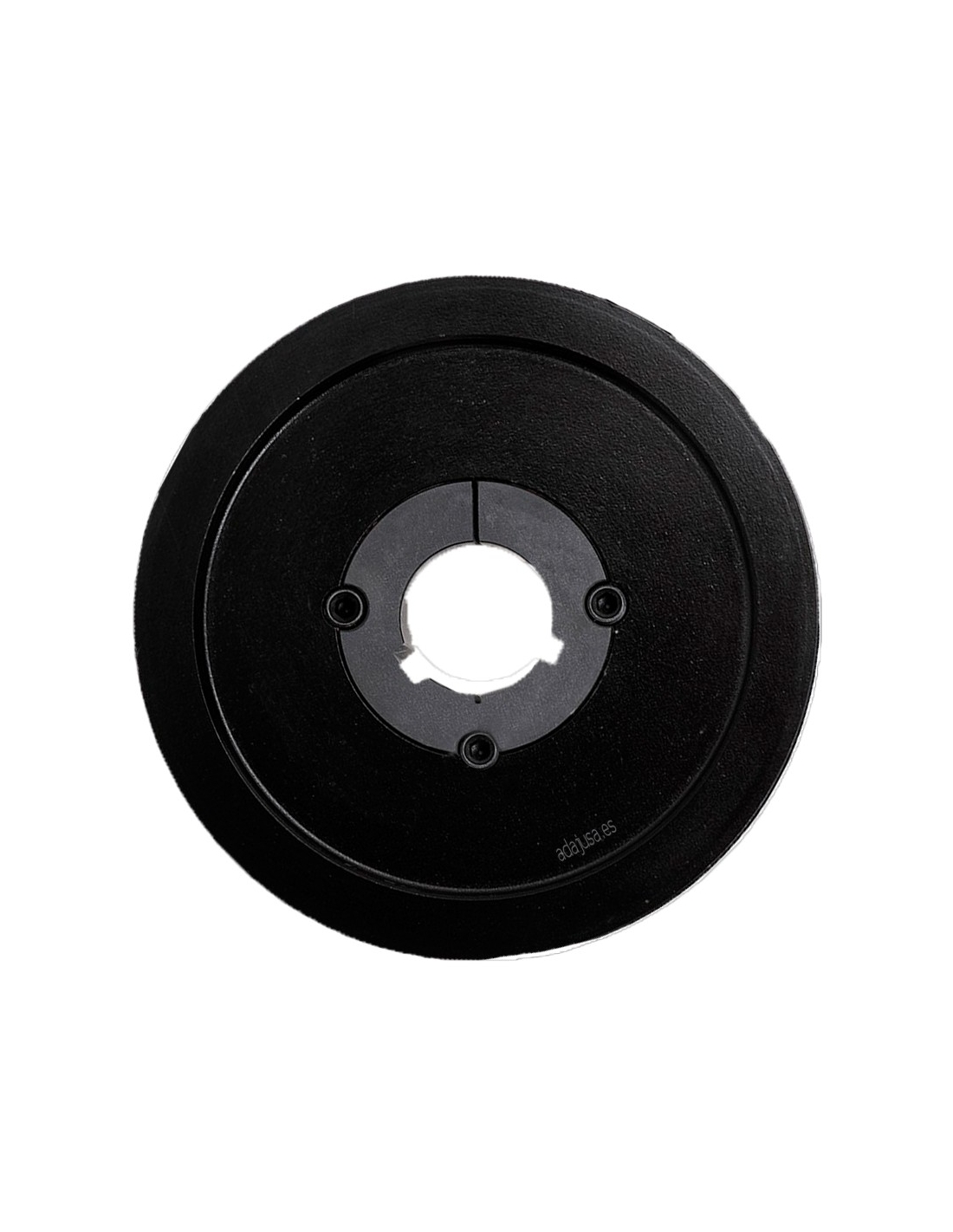

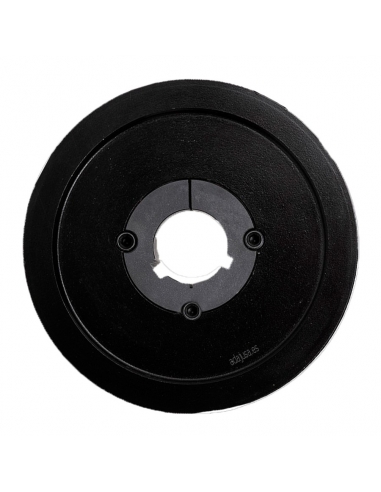

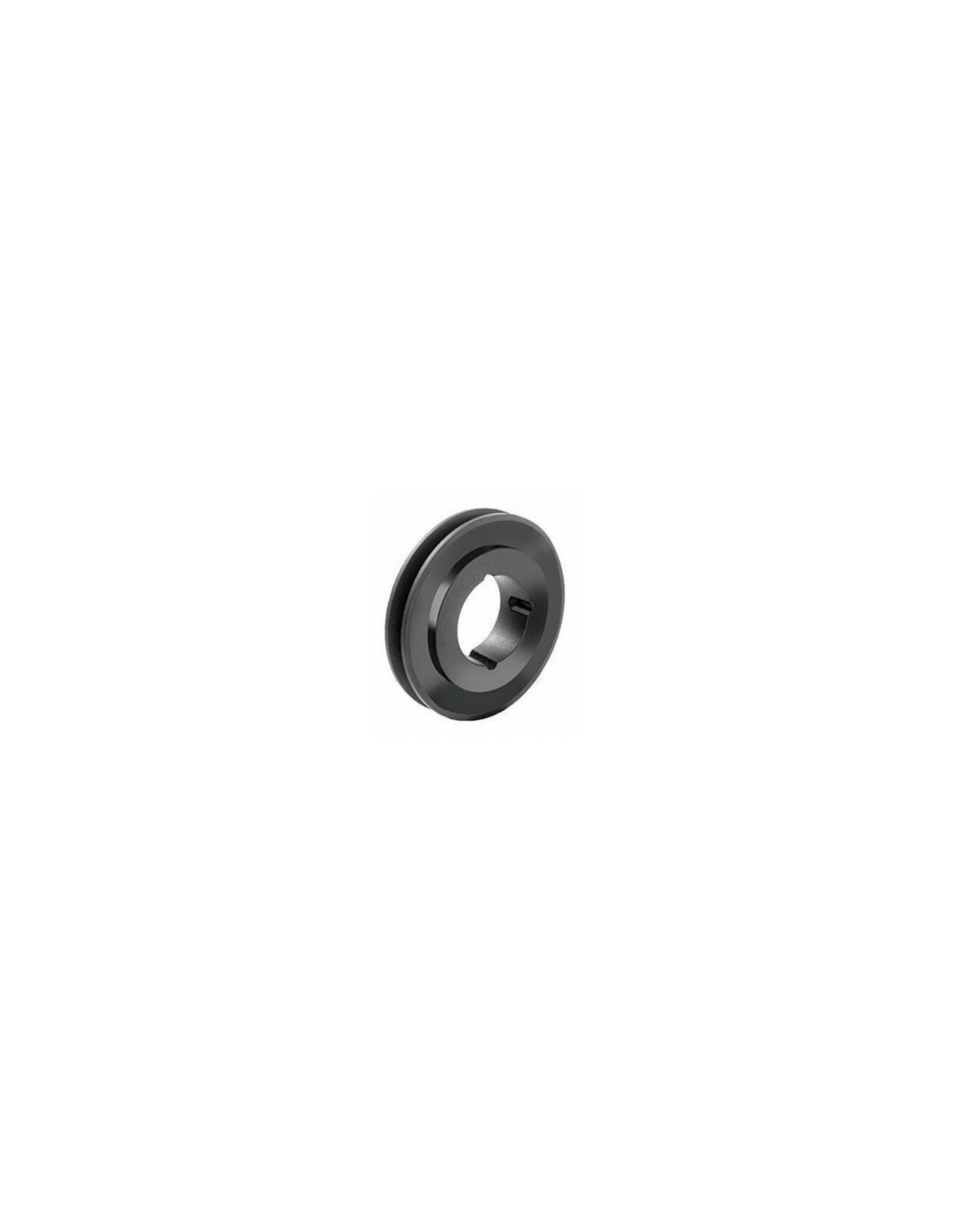

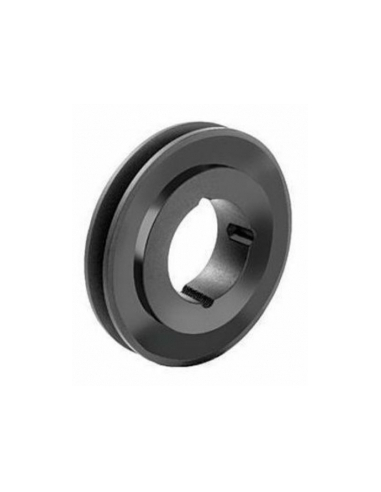

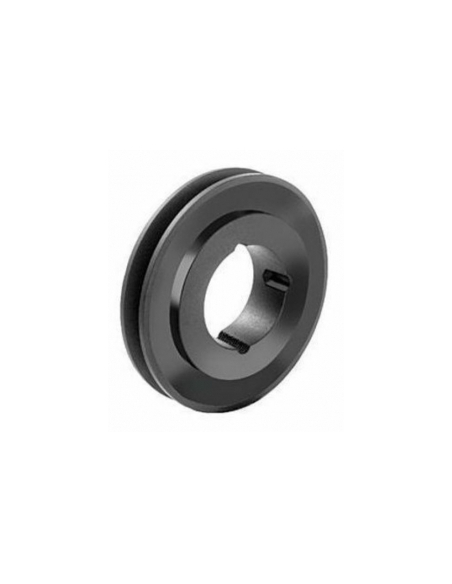

Pulley for V-belts Ø67mm, from 1 slot, with taper lock with 19mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211

  • Type of belts: "V" profile type A and SPA
  • Pulley diameter (Dp): 67mm
  • Number of slots for belts: 1
  • Taper: center shaft diameter 19mm with 6mm key

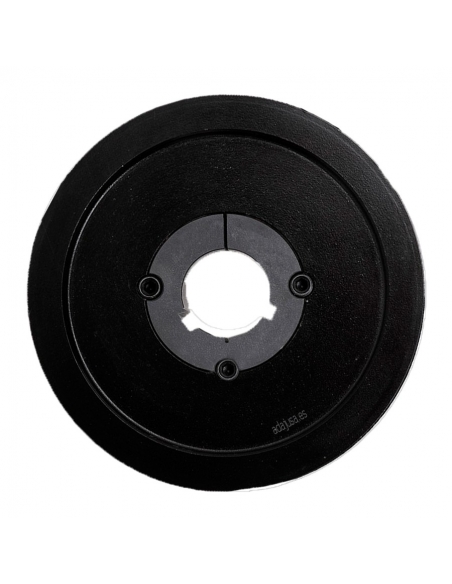

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for "V" profile V-belts, for mechanical transmission. Manufactured in cast iron and steel, and according to DIN2211 - ISO4183 standard.

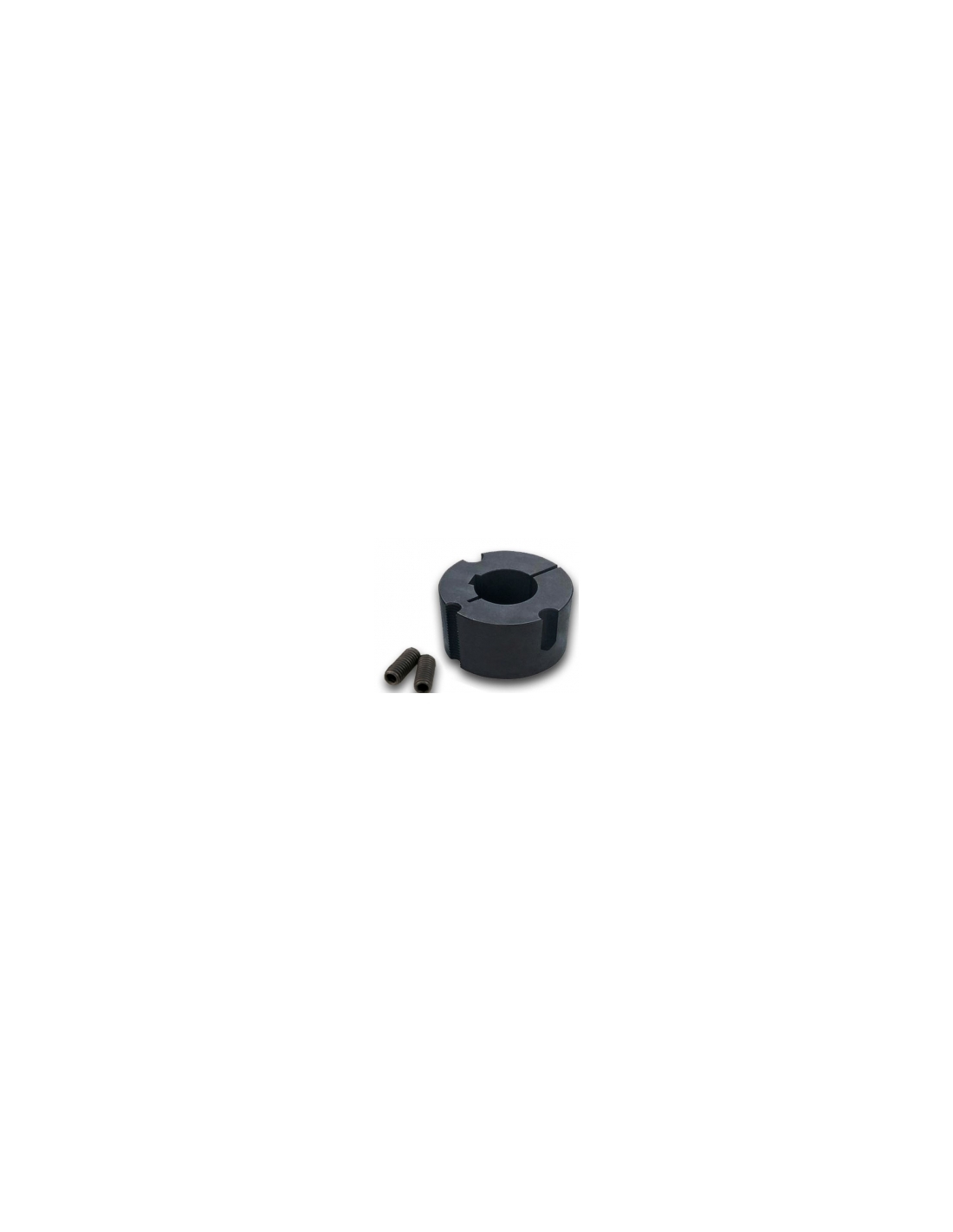

Machined V-belt pulley with tapered bush "Taper Lock", with bore and keyway already machined to 14mm diameter and with 5mm keyway, with all set screws and bolts, manufactured in machined iron GG25.

Pulley dimensions:


  • (Dp): 67 mm
  • (Od): 72,5 mm
  • (F): 40 mm
  • (J): 38 mm
  • (L): 22 mm
  • (M): 2 mm
  • (N): 62 mm



Shaft and keyway dimensions:

Dimensiones de taladro para chaveteres adajusa

  • Shaft diameter: 19mm
  • Keyway (b): 6mm
  • Dimension t: 21.8mm




Note: The reference of the taper and the pulley supplied may vary, always adjusting to the dimensions requested.


Material for professional use, install in compliance with the regulations in force at the place of installation.
