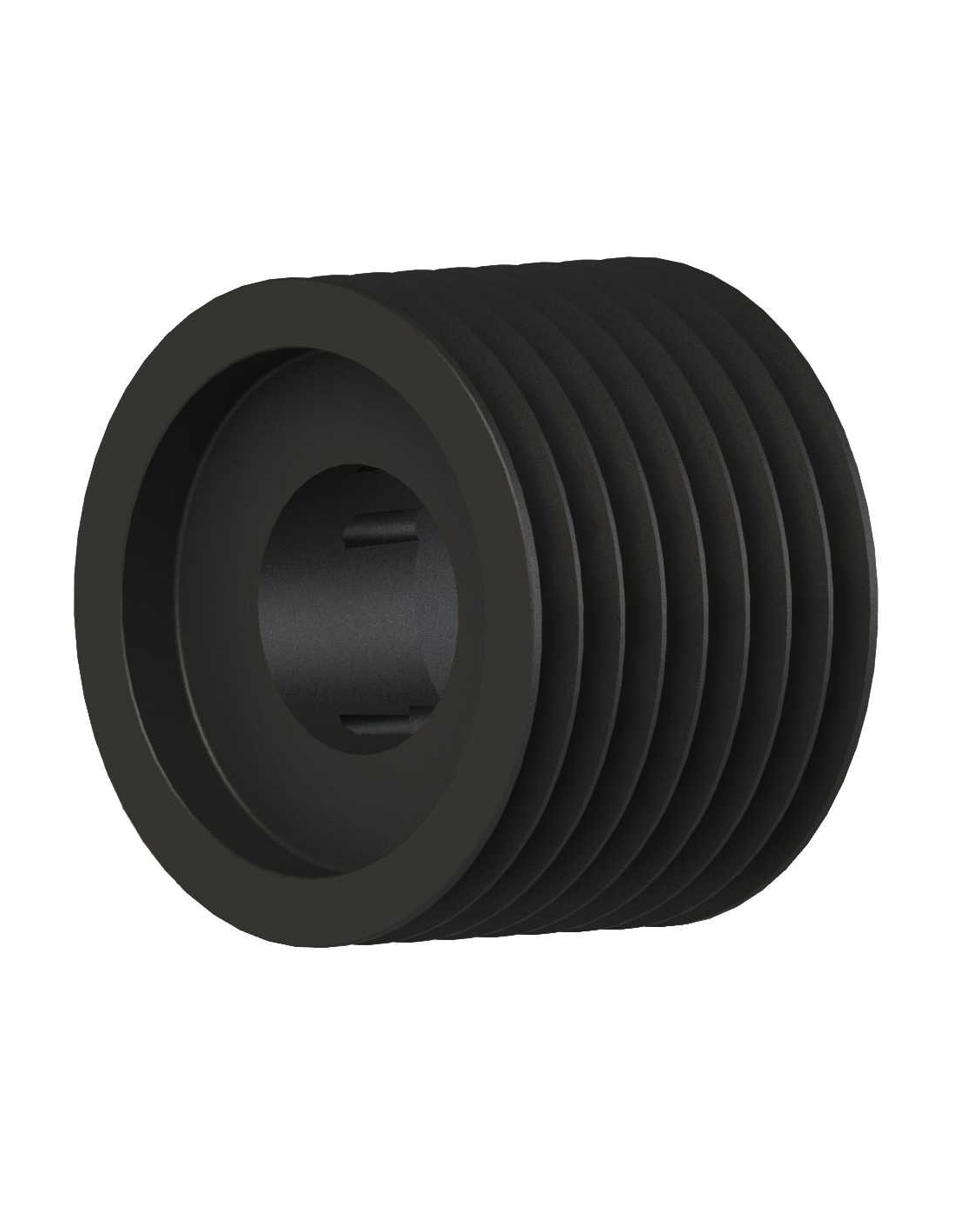

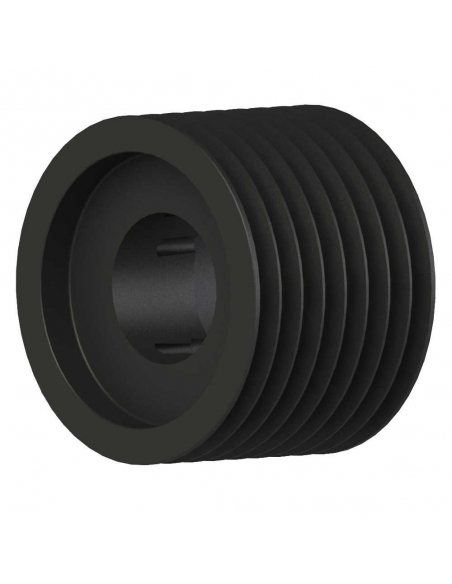

Pulley for trapezoidal SPB 212x8 plug slot T3535

€281.13 Tax included

€232.34 tax excl.

Pulley for trapezoidal belts Ø212mm, 8 grooves for belts. Machined for conical bushing - taper lock T3535. Made of cast steel and valid for all belts with profile in "V" type B and SPB. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPB-212X8-T3535

  • Type of straps: Profile in "V" type B and SPB.
  • Diameter: 212 mm.
  • number of strap slots: 8.
  • Taper: T3535.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


V-shaped pulley for trapezoidal belts, for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183 standards.

Machined trapezoidal pulley for "Taper Lock" conical bushing.

Technical characteristics:

  • Type: trapezoidal "V" profile.
  • Models: B and SPB.
  • Material: cast steel.
  • Primitive diameter: 212mm.
  • Number of slots: 8
  • Tapered Bushing Type - Taper: T3535
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.


Dimensions:

  • (Dp): 212
  • (Od): 219
  • (F): 158
  • (J): 169
  • (K): 34.5
  • (L): 89
  • (M): 34.5
  • Taper: 3535



Material for professional use, install in compliance with the regulations in force at the place of installation.
