Pulley V-belt SPA 315x1 slot taper T2012

€104.86 Tax included

€86.66 tax excl.

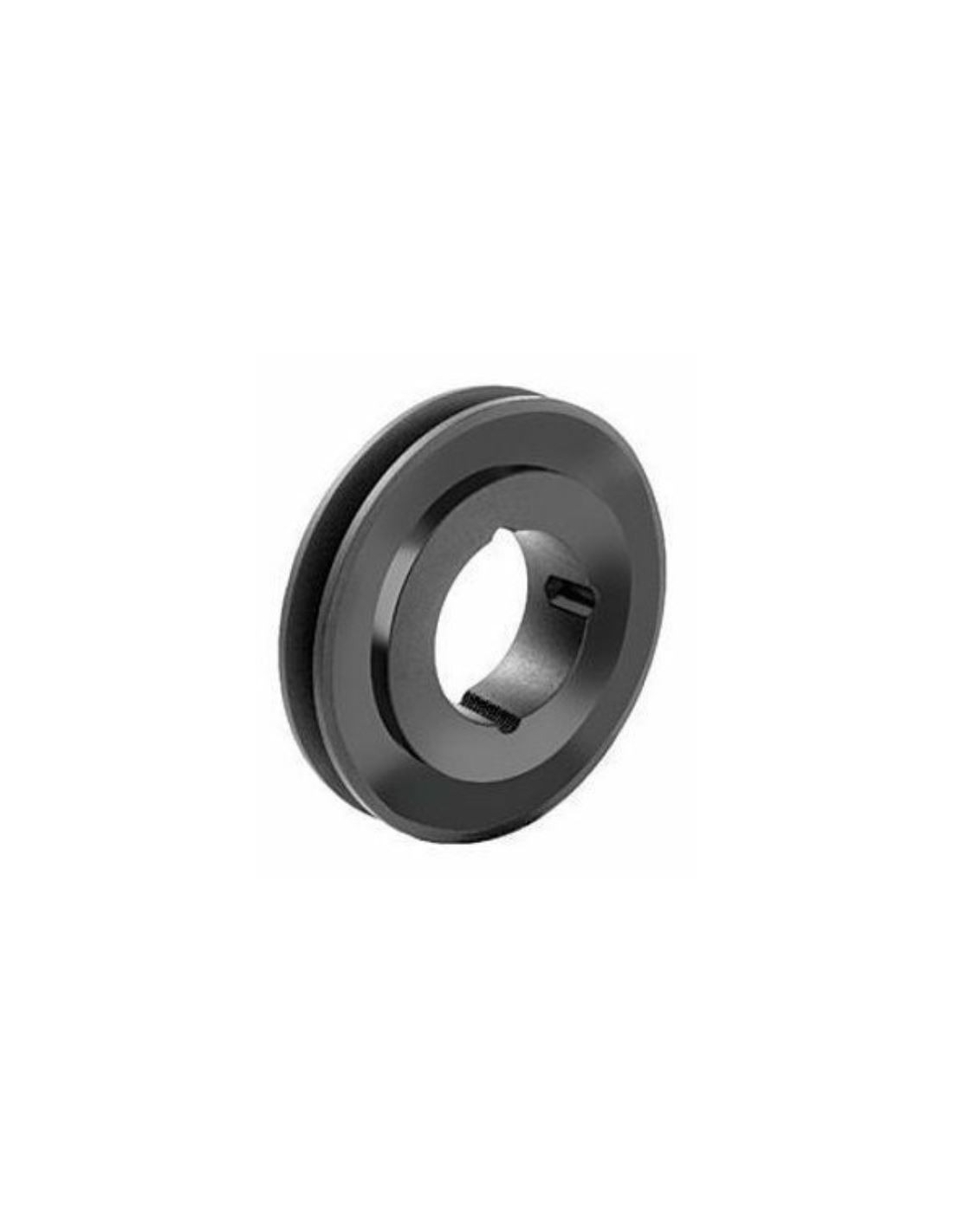

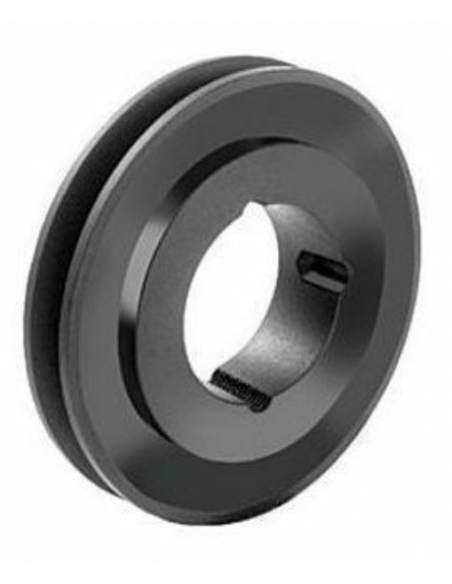

Pulley for trapezoidal belts Ø315mm, 1 slot. Machined for conical bushing - taper lock T2012. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPA-315X1-T2012

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter: 315 mm.
  • number of strap slots: 1.
  • Taper: T2012

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 315mm.
  • Number of slots: 1.
  • Type of conical bushing - taper: T2012
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 315
  • (Od): 320.5
  • (F): 20
  • (J): 280
  • (L): 32
  • (M): 12
  • (N): 100
  • Taper: 2012



Material for professional use, install in compliance with the regulations in force at the place of installation.
