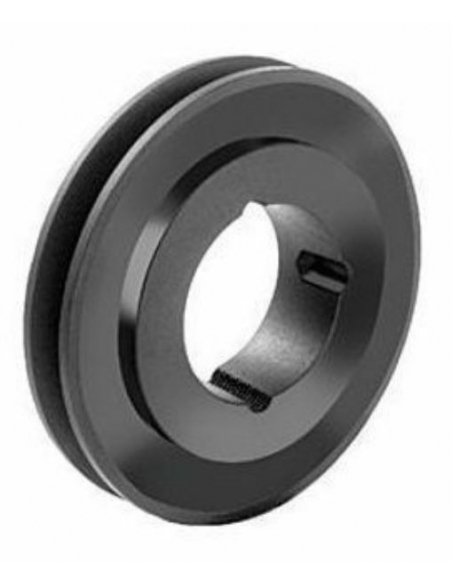

Pulley V-belt SPA 132x1 slot taper T1610

€32.56 Tax included

€26.91 tax excl.

Pulley for trapezoidal belts Ø132mm, 1 slot. Machined for conical bushing - taper lock T1610. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPA-132X1-T1610

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter: 132 mm.
  • number of strap slots: 1.
  • Taper: T1610

Imagen representativa para fines ilustrativos, el artículo suministrado corresponderá a las especificaciones indicadas.

No queries yet, leave the first!
Privacy
Shipments
Returns


V-shaped pulley for trapezoidal belts, for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183 standards.

Machined trapezoidal pulley for "Taper Lock" conical bushing.

Technical characteristics:

  • Type: trapezoidal "V" profile.
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 132mm.
  • Number of Slots: 1
  • Tapered bushing type - taper: T1610
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 132
  • (Od): 136
  • (F): 16
  • (L): 25
  • (M): 9
  • (N): 80
  • Taper: 1610



Material for professional use, install in compliance with the regulations in force at the place of installation.
