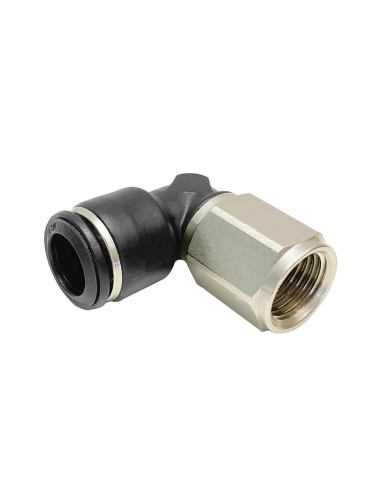

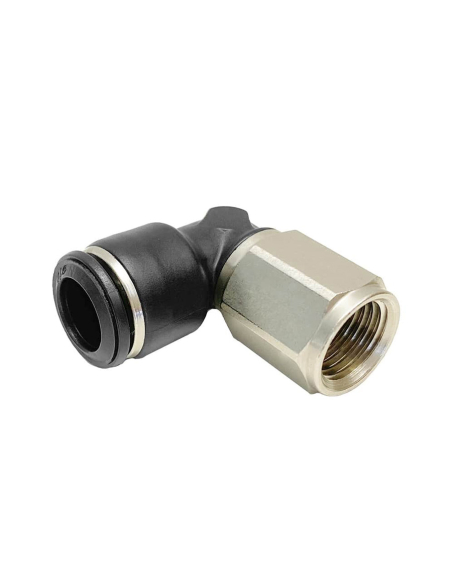

Female cylindrical adjustable elbow fitting 1/4 tube 8mm Series 55000 - Aignep

Name: Female cylindrical adjustable elbow fitting 1/4 tube 8mm Series 55000 - Aignep
Brand: Aignep
SKU: 55106814
Price: 3.5211 EUR
Availability: InStock

€3.52 Tax included

€2.91 tax excl.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Adjustable elbow fitting with 1/4 cylindrical thread for 8mm tube, made of technopolymer and nickel-plated brass, the tube extraction ring in acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.

Technical characteristics:

Manufacturer: Aignep .
Reference: 55106 8 1/4
Female thread: 1/4
Tube outer diameter: 8mm
Fluid: vacuum, compressed air and water
Material: Technopolymer and nickel-plated brass
Tube extractor ring: acetal resin
retention gasket: NBR
Clamping spring: stainless steel
Pressure: -0.99 bar at 20 bar
Working temperature: -20ºC to +80ºC
Thread regulations:
- Conical gas conforming to ISO 7.1, BS 21, DIN 2999
- Cylindrical gas conforming to ISO 228 Class A
- ISO R/262 compliant metric

55106Esq

55106Tab

Material for professional use, install in compliance with the regulations in force at the installation site.
