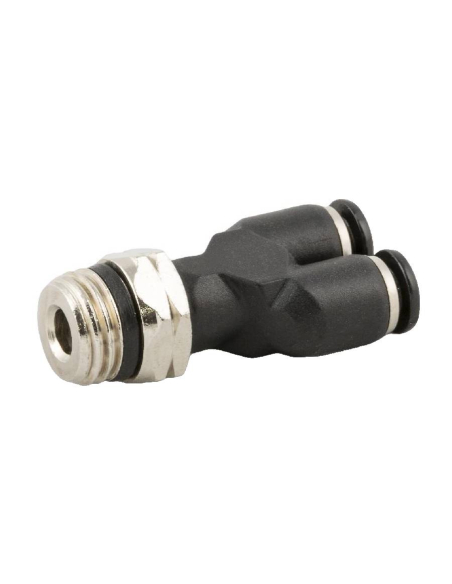

Conical male swivel Y-connector short 1/4 pipe 4mm Series 55000 - Aignep

€3.51 Tax included

€2.90 tax excl.

Adjustable Y-connector with conical male thread short 1/4 and tubes diameter 4mm with gasket, made of technopolymer and nickel-plated brass.Veryefficientconnection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 50320 4 1/4




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Adjustable Y-connector with conical male thread short 1/4 and tubes diameter 4mm with gasket, made of technopolymer and nickel-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. It has a clamping spring, which clamps the tube without deforming or deforming it, thus simplifying the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum

Technical specifications:

  • Manufacturer: Aignep.
  • Part number: 50320 4 1/4
  • Outer tube diameter: 4mm
  • Male conical short thread: 1/4
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer and nickel-plated brass
  • Tube puller ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread standard
    • Gas conical "UNIVERSAL SHORT"

55320dimesniones
55320td

Material for professional use, install in compliance with the regulations in force at the place of installation.
