Adapter for male quick plug 1/4 European profile - Aignep

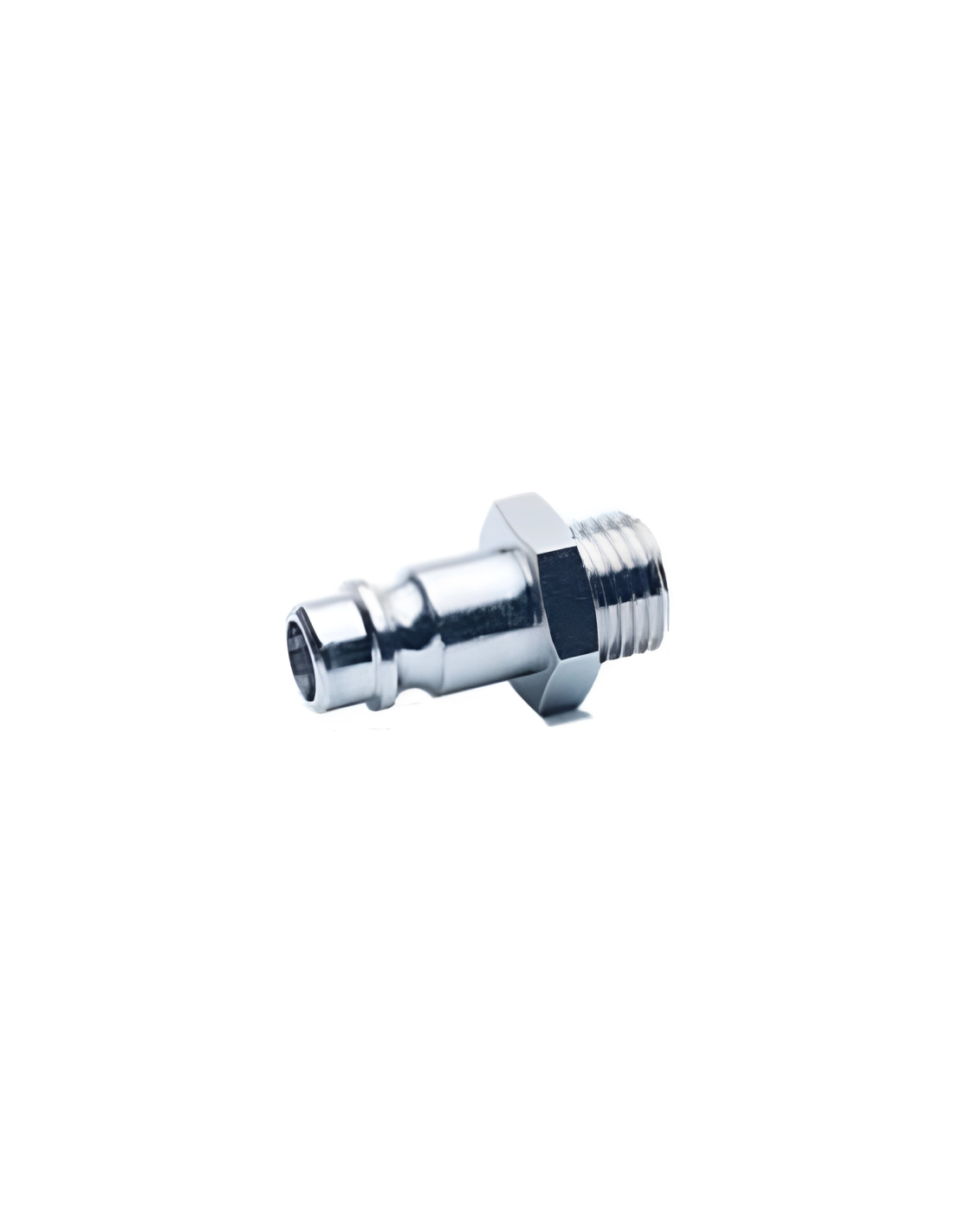

Adapter for quick plug G 1/4 male thread, European profile. The use of quick couplings together with this type of adapters allows a simple and quick connection and disconnection of tools, machinery and pneumatic elements in the installed distribution network, avoiding air losses between the plug and the tool. Made of nickel-plated brass.


Adapter valid for European profile quick couplings of the 160 series and universal quick couplings of the universal series (Multipresa Series), as well as for European profile quick couplings of the 660 series of the Aignep brand.

Main technical characteristics:

• Manufacturer: Aignep
• Reference: 261 1/4
• Thread type: G 1/4 male
• Profile: European
• Compatible fluid: Compressed air
• Working pressure: 0 to 16 bar
• Maximum static pressure (without pulsations): 35 bar
• Working temperature range: -20ºC to +80ºC
• Passage diameter (DN): 7.5mm - 7.8mm
• Flow rate at 6 bar ΔP 1 bar : 1300 Nl/min
• Flow rate at 6 bar ΔP 0.5 bar : 1050 Nl/min
• Flow rate at 6 bar ΔP 0 bar : 1830 Nl/min (free exhaust)

Material for professional use, install in compliance with the regulations in force at the installation site.
