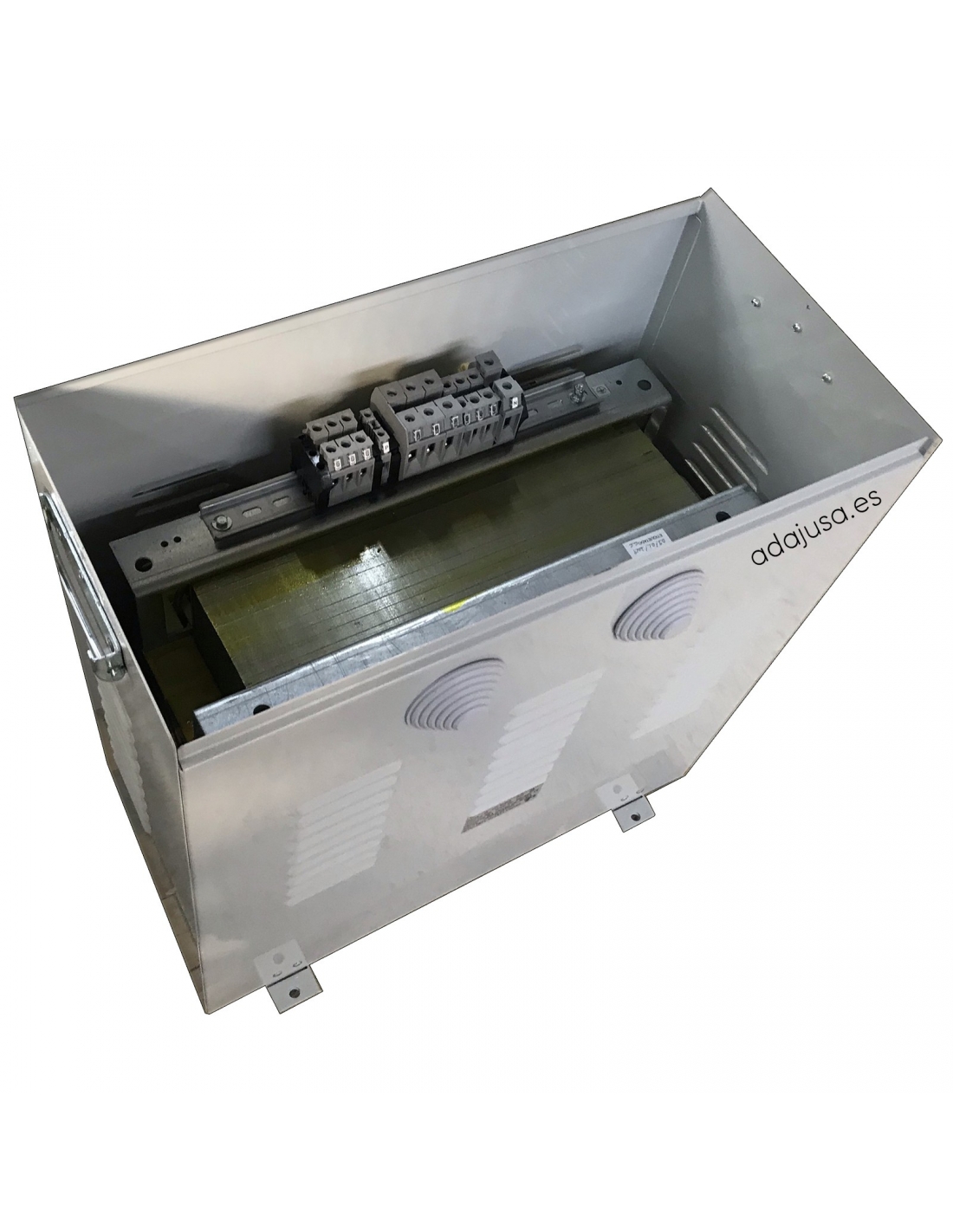

Three-phase transformer 63 KVA 400/400+N ultra isolation delta-star box IP23

Special manufacturing material
€3,001.60 Tax included

€2,480.66 tax excl.

Ultra-insulated 63 kVA three-phase transformer with metal box that allows the adaptation of tension between line and receiver in three-phase systems. It has an electrostatic safety display that filters and grounds unwanted signals and disturbances.

Reference: TRTA63-Dyn11

Esquema-transformador-trifasico Dyn 400-400

No queries yet, leave the first!


Ultra-insulated three-phase transformer for voltage change, galvanic separation of circuits or machinery, dry type, with electrostatic display between primary and secondary.

This ultra-insulated transformer provides a separation between primary and secondary circuits by means of a safety electrostatic display that filters and grounds unwanted signals and disturbances. The degree of efficiency of this display depends directly on the quality of the grounding of the installation.

They are supplied in metal box that provides a degree of insulation IP-23, connection by terminals. It does not incorporate any overload protection circuits.

Manufactured with low loss magnetic sheet providing high performance.

specifications:


  • Reference: TRTA63-Dyn11
  • Windings: Thermal class N 200oC.
  • Primary voltage: 400Vac.
  • Secondary voltage: 400Vac.
  • Power: 63KVA.
  • Apparent intensity:
    • 400Vac: 90A
  • Frequency: 50/60Hz.
  • Connection: Dyn11
  • Test voltage: 3KV between windings and mass.
  • Insulators: Thermal class F 155oC and H 180oC.
  • Protection: IP-23 (Metal Box).
  • Ambient temperature: TA-25oC.
  • Cooling: ANAN (Air natural).
  • Certificate: UNE-EN 61558, UNE-EN 60076.

Dimensiones de transformadores trifásicos
