Pneumatic valve 1/2 5 way 3 positions pressure...
Pneumatic valve 1/2 5 way 3 positions pressure centers - Aignep

Pneumatic valve 1/2 5 way 3 positions pressure centers - Aignep

€114.88 Tax included

€94.94 tax excl.

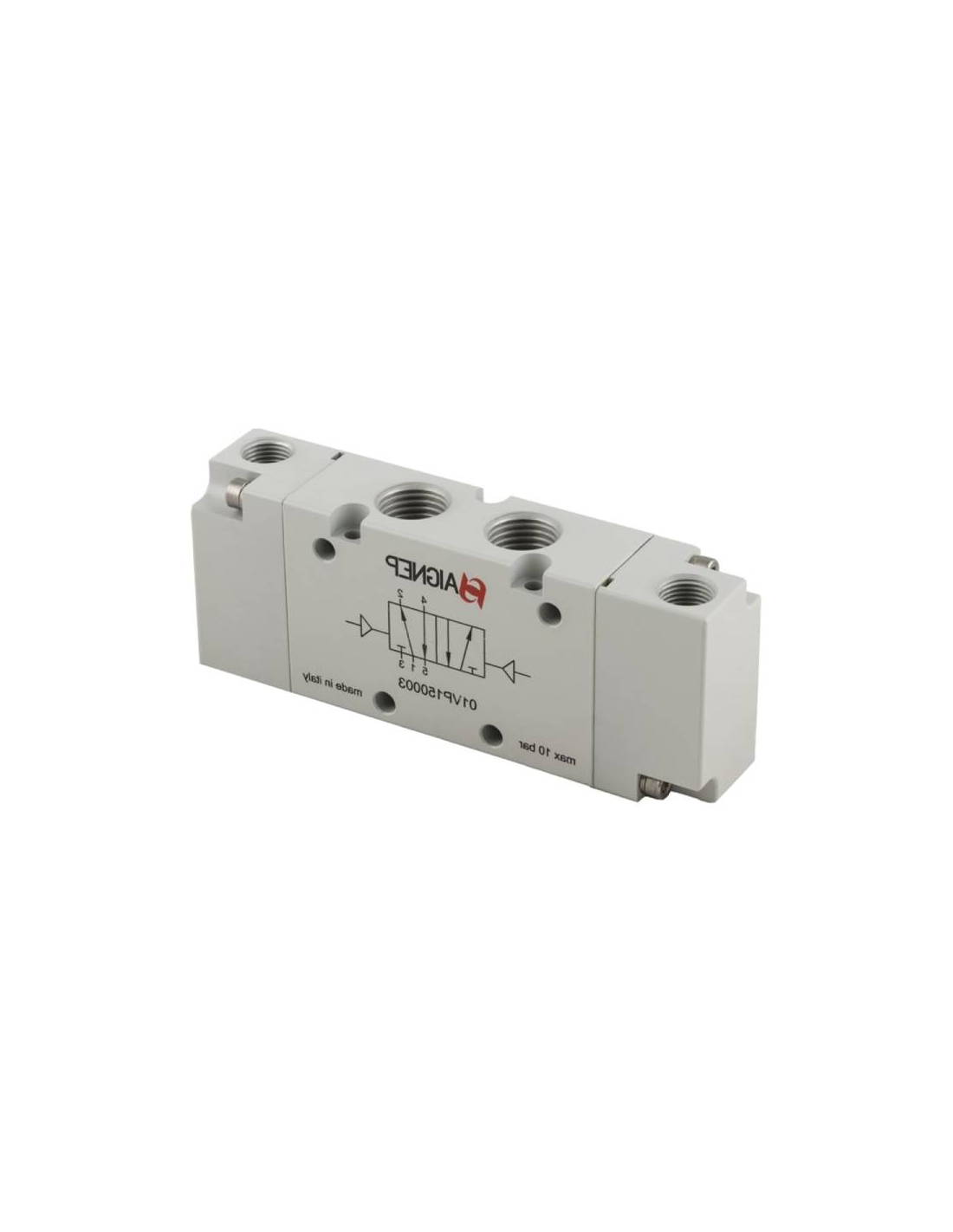

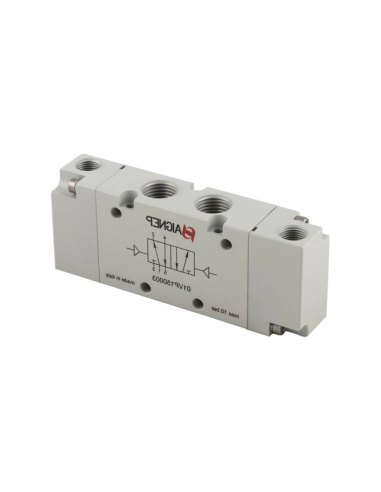

Valve 1/2 5 way 3 positions, pressure centers. Anodized aluminum body, NBR seals.With G 1/2" threads.

Part no.: 01V P0 7 PC 05
MONOESTABLE OC
Logotipo Aignep


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve 1/2 5 way 3 positions, open centers in pressure. Body made of anodized and painted aluminum, slide in chemically nickel-plated aluminum and NBR seals.

The valve has 3 positions, with pressure on one pilot, the cylinder moves forward, without pressure on the pilots, the cylinder will be pressurized on both sides, and with pressure on the other pilot, the cylinder retracts.

Features:

  • Pneumatic valve 1/2 5 way 3 positions, pressure centers.
  • Manufacturer: Aignep
  • Part number: 01VP07PC05
  • Operating pressure: 0 - 10 bar
  • Actuating pressure: 2 - 10 bar
  • Operating Temperature: -10ºC to +60ºC
  • Flow rate at 6 bar ΔP 1 bar: 5000Nl/min



Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
