Double speed contact block 2NA screw connection - Giovenzana

€8.81 Tax included

€7.28 tax excl.

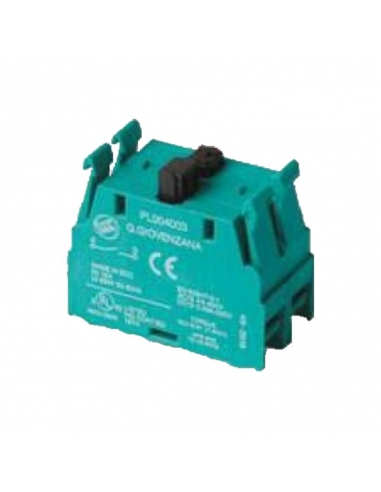

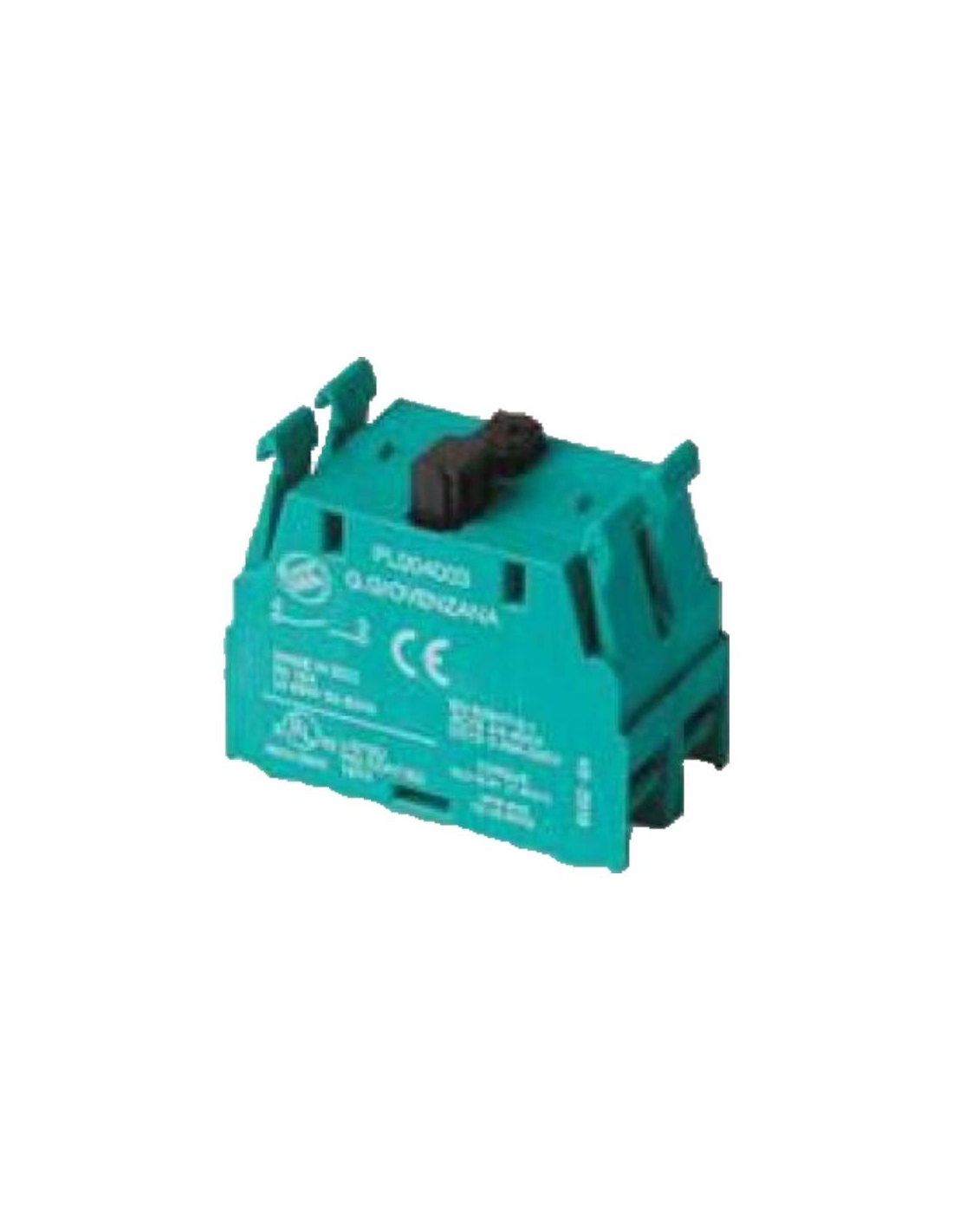

Block of 2 open contacts (2NA) with plungers at different heights, to be able to manage systems with two-speed motors, or dual-time actuators.

Connection of the cables by means of a screw terminal, block in green.

Reference: PL004010.S

contactos abiertos dos velocidades
Logotipo normativa botoneras serie HP resumido

Logotipo Giovenzana Adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated

No queries yet, leave the first!


Open contacts block (2NA) of action at different heights, this configuration allows sequential control, such as 2-speed motor drive with a single push button.

The operation of these open contact cameras is:

  • Without pressing: the two open contacts:
  • Halfway through the journey (approximately): one of the open contacts is closed.
  • By pressing completely: the other contact is closed, at this point, both are closed.

contactos abiertos dos velocidades

Connection of the electrical cable by means of a contour terminal. High current capacity contact (16a).

These contact blocks are designed to be used in the P02/P03/PLB/PLN/PLBN series buttons

specifications:

  • Manufacturer: Giovenzana
  • Reference: PL00410.S
  • Type of action: Normally open contact (NA+NA)
  • Color: Green.
  • Nominal insulation voltage (Ui): 690V.
  • Working frequency: 50/60Hz.
  • Rated thermal current (Ith): 16a.
  • Rated current of use (In) category AC15 (alternating current):
    • 24Vac: 10A.
    • 60Vca: 8A.
    • 110Vac: 6A.
    • 240Vac: 5A.
    • 400Vac: 4A.
    • 500Vac: 4A.
    • 690Vac: 2A.
  • Rated current of use (In) category DC13 (direct current):
    • 24Vcc: 2A.
    • 48Vcc: 2A.
    • 60Vcc: 1A.
    • 110Vcc: 0.4A.
    • 250Vcc: 0.4A.
  • Contact resistance:
  • Contact operation: Slow double contact rupture.
  • Drive force: 4N.
  • Electrical duration:
    • 1A: 1500000 cycles.
    • 2A: 500000 cycles.
    • 3A. 250000 cycles.
  • Standard: IEC/EN60947-5-1.

dimensions:

Datos bloque contacto PCWDS - Giovenzana adajusa

Note: This contact block is only valid for elements manufactured by Giovenzana.

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
