CT-237 PROMAX/ADAJUSA leak gripper
Leakage current clamp CT-237 - PROMAX
Leakage current clamp CT-237 - PROMAX
CT-237 PROMAX/ADAJUSA leak gripper
Leakage current clamp CT-237 - PROMAX
Leakage current clamp CT-237 - PROMAX

Leakage current clamp CT-237 - PROMAX

Material on request
€302.02 Tax included

€249.60 tax excl.

Precision meter for leakage currents with dual operating mode: Low frequency (50/60 Hz) or high frequency (up to 1 kHz), both in numerical mode and in the form of a graphic bar of 20 samples per second.

It incorporates a filtering circuit designed to eliminate the effect of high-frequency parasitic noise and harmonics for AC current measurement.

Reference: CT-237


No queries yet, leave the first!

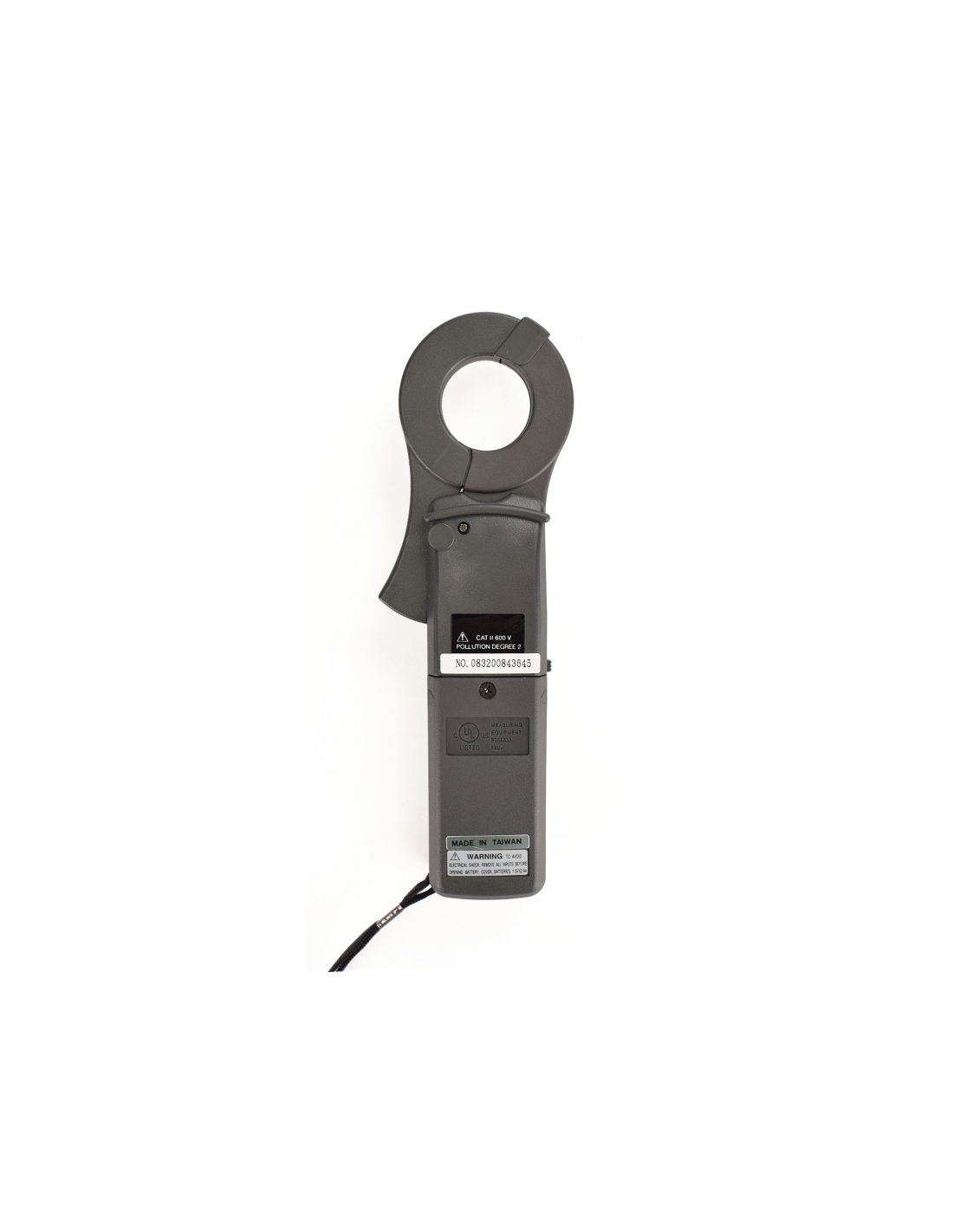

The CT-237 is a precision AC digital clamp meter for leakage current measurement that includes low frequency (50/60 Hz) or high frequency (up to 1 kHz) operating mode selection. Both in numerical mode and in the form of a graphic bar of 20 samples per second. It incorporates a filtering circuit designed to eliminate the effect of high-frequency parasitic noise and harmonics for AC current measurement.

The clamp is shielded to minimize the effect of scattering external magnetic fields.

The CT-237 clamp can be used with one hand and has a single rotary selector for the selection of functions and scales: Current, Voltage, Frequency, Continuity and Resistance. It includes measurement retention functions (HOLD or MAX/MIN HOLD) and operation in relative measure mode.


Brand/Supplier: PROMAX
Reference: CT-237


Technical specifications:

  • Frequency selection: Switch for low frequency (50/60 Hz) or Wide mode (40 Hz to 1 kHz) reading mode
  • AC voltage: 400V
  • AC Current:40mA, 400mA, 4A, 40A, 60A
  • Resistance and continuity: Scales of 40 Ω and 400 Ω / Acoustic indication less than 38 Ω (for continuity measurement)
  • Frequency measurement: Included
  • Numerical indication: 2 measurements per second
  • Graphic bar indication: 20 measurements per second

Calibration certificate not included in the supply. It must be requested before placing the order.
