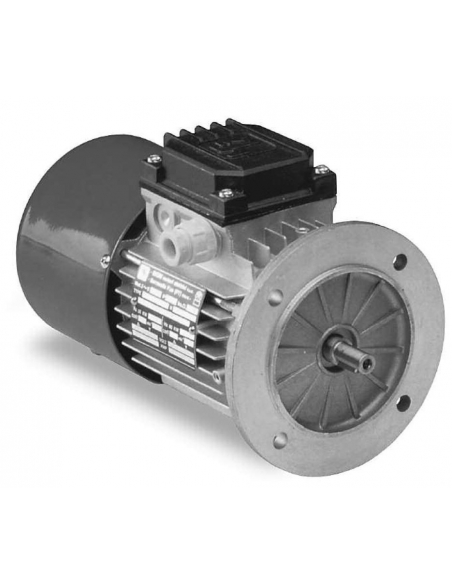

Electric motor with brake, three-phase 0.55kW (0.75HP) 230/400Vac 1000 rpm Flange B5. Made of aluminum cast iron.
Features:
- Manufacturer: MGM
- Manufacturer's Reference: BA80B6 B5
- Engine type: self-braking squirrel cage async
- Power: 0.55 Kw (0.75HP)
- Voltage: 230/400 Vac., 50/60Hz.
- Number of poles: 6 Poles
- Revolutions: 900 rpm
- Intensity at 400V: 1.8A
- Efficiency: IE1
- Power factor: 0.68
- Torque (Cn): 5.84 Nm
- Brake type: electromagnetic.
- Brake torque: 10 Nm.
- Continuous service: S1.
- Degree of protection: IP54
- Clamping type: Flange B5
- Shaft diameter: 19mm.
- Flange Diameter: 200mm
- PAM Flange: 200/19
- Housing size 80
- Housing material: Aluminum.
- Weight: 13 Kg.
- CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.
