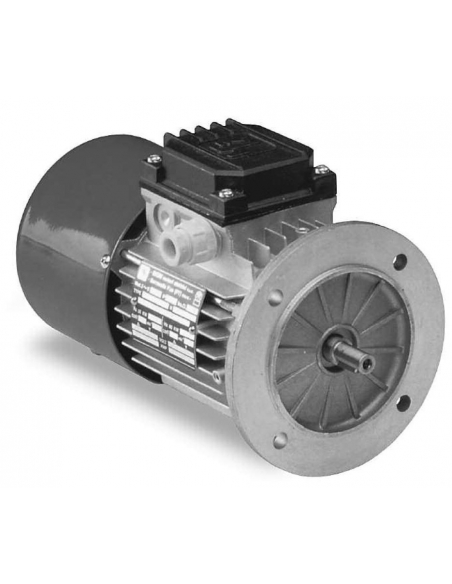

Three-phase motor 3Kw 4HP with brake 230/400V 1000 rpm Flange B5 - MGM

Three-phase motor 3Kw 4HP with brake 230/400V 1000 rpm Flange B5 - MGM

€1,903.63 Tax included

€1,573.25 tax excl.

Three-phase self-braking electric motor 3kW (4HP) 230/400Vac., 1000 rpm (6 Poles), Flange B5, aluminum housing. Manufactured under European IEC regulations.

Manufacturer: MGM

Reference: BA132SB6 B5

  • Voltage: 230/400Vac 50/60Hz.
  • Power: 3Kw - 4HP.
  • Number of poles: 6.
  • Revs: 1000 rpm.
  • Flange: B5.
  • Shaft diameter: 38mm.
  • Flange diameter: 300mm.
  • PAM: 300/38
  • Size: 132
  • Energy efficiency: IE1.

Logotipo MGM

No queries yet, leave the first!


Electric motor with brake, three-phase 3kW (4HP) 230/400Vac 1000 rpm Flange B5. Made of aluminum cast iron.

Features:

  • Manufacturer: MGM
  • Manufacturer's Reference: BA132SB6 B5
  • Engine type: self-braking squirrel cage async
  • Power: 3 Kw (4HP)
  • Voltage: 230/400 Vac., 50/60Hz.
  • Number of poles: 6 Poles
  • Revolutions: 960 rpm
  • Intensity at 400V: 7.2A
  • Efficiency: IE1
  • Power factor: 0.72
  • Torque (Cn): 29.84 Nm
  • Brake type: electromagnetic.
  • Brake torque: 100 Nm.
  • Continuous service: S1.
  • Degree of protection: IP54
  • Clamping type: Flange B5
  • Shaft Diameter: 38mm.
  • Flange Diameter: 300mm
  • PAM Flange: 300/38
  • Housing size 132
  • Housing material: Aluminum.
  • Weight: 66 Kg.
  • CE marking.

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.
