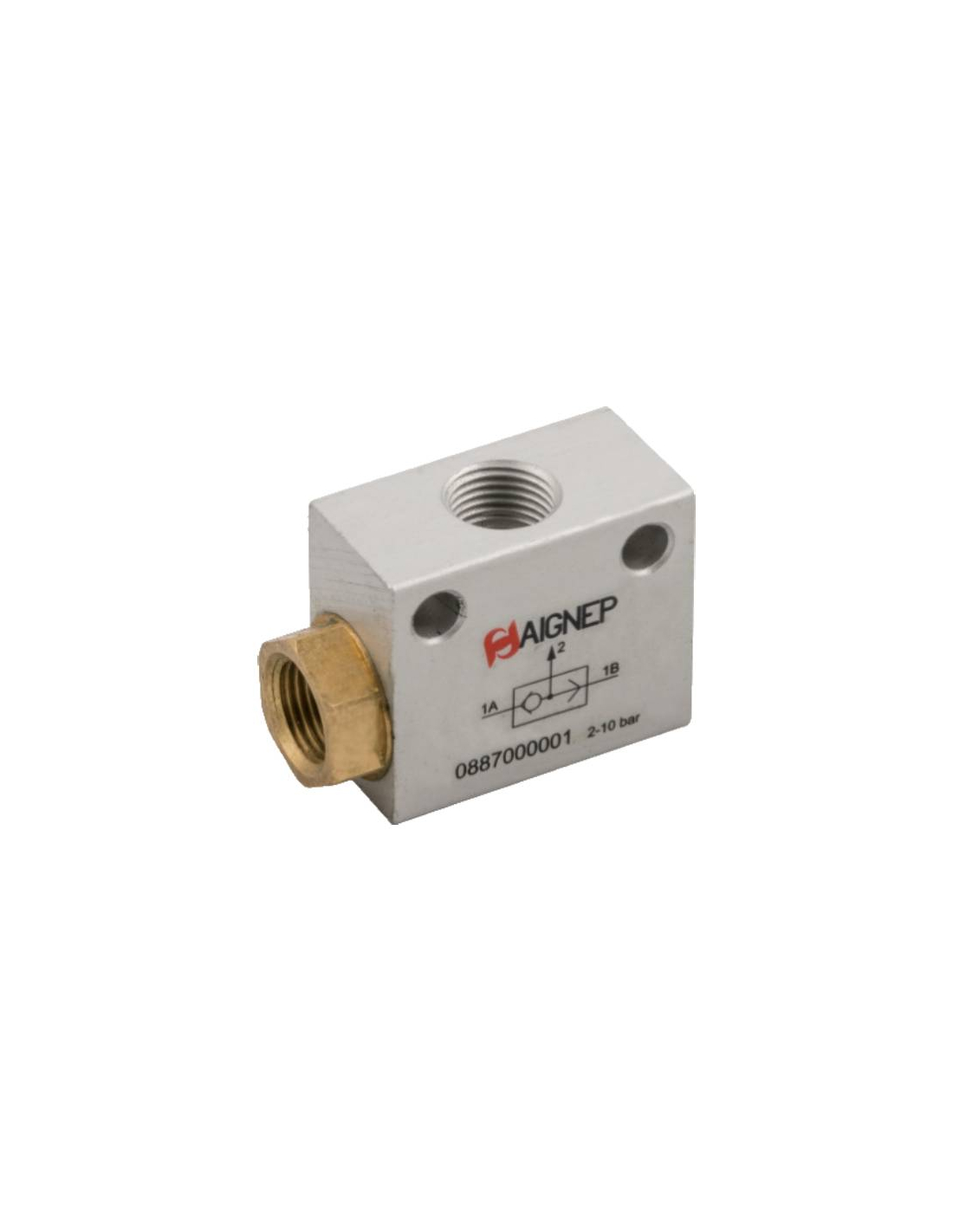

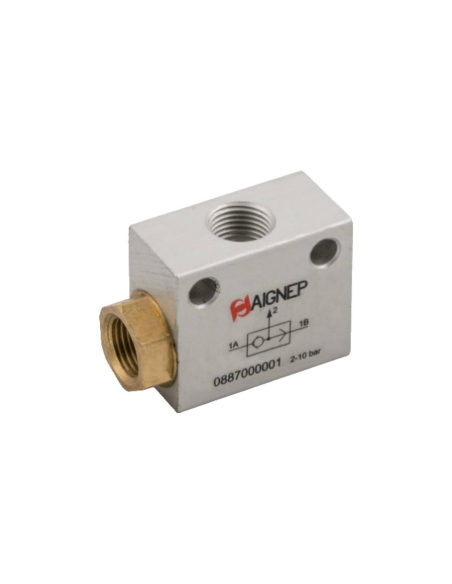

Pneumatic logic valve OR function 1/8 - Aignep

Name: Pneumatic logic valve OR function 1/8 - Aignep
Brand: Aignep
SKU: 8870 1/8
Price: 16.577 EUR
Availability: InStock

€16.58 Tax included

€13.70 tax excl.

Pneumatic logic valve "OR" function with built-in quick fittings for 1/8 diameter tube

Series: Function
Reference: 8870 1/8

8870DIAGRAM
aignep
normative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic logic valve "OR" function, with built-in quick fittings for 1/8 diameter tube. Fixing using through screws or DIN rail.

Regulator Features:

Manufacturer: Aignep .
Reference: 8870 1/8
Valve type: "OR" logic function.
Thread size: 1/8.
Body material: Anodized aluminum.
Internal components: Brass
Gaskets: NBR
Spring: Stainless steel
Working pressure: 2 to 10 bar
Working temperature: -10ºC + 60ºC
Nominal flow at 6 bar : 100 Nl/min.
Fluid: Filtered compressed air with or without lubrication.
Installation: In any position.

8870DIMENSIONS

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

catalogo serie fucntion

Download (8.93MB)
