Pneumatic timer - Metal Work

€122.43 Tax included

€101.18 tax excl.

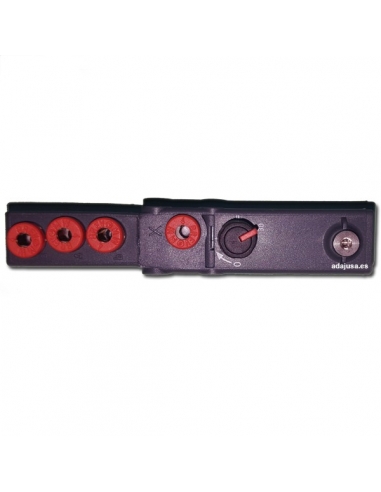

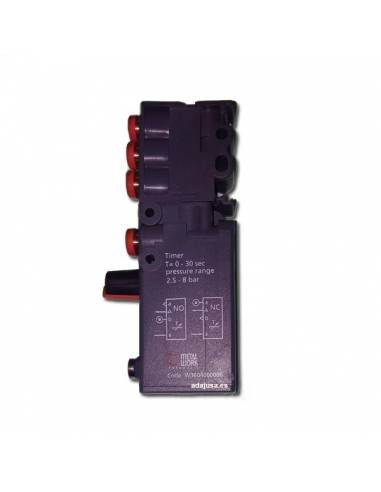

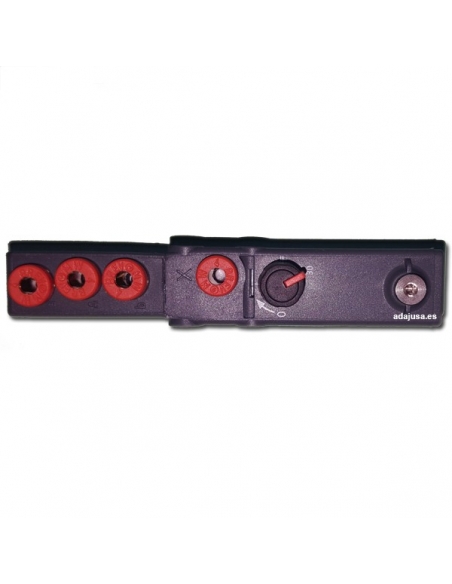

Pneumatic timer, with a regulation range between 0 and 30 seconds. Quick connect fittings integrated into the 4mm diameter timer body.

Reference: W3604000006

Logotipo Metal Work


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic timer for general-purpose applications. The value of the timing time is adjusted by rotary knob. The timer can work in all 2 modes, such as 3/2 NC and 3/2 NO, depending on the connection.

The maximum time can be increased by adding an outside tank to the timer.

Adapter for mounting on din-rail integrated into the body.

Mechanical status indicator in orange.

Fast connection fittings for tube of diameter 4mm integrated on the body.

specifications:

  • Manufacturer/Supplier: Metal Work.
  • Reference: W3604000006.
  • Temperature range: -10..+60ºC.
  • Connection system: By means of fittings for tube Ø4mm.
  • Working pressure range: from 2.5 to 8 bar.
  • Nominal valve diameter: 2.7mm.
  • Regulation range: 0 to 30 seconds (to 6 bar).
  • State change time:
  • Repetitiveness: ±0.4 s.
  • Fluid type: Compressed air.
  • Materials: Aluminum and technopolymer.
  • Type of Joints: NBR:

Dimensiones temporizador neumático Metal Work

Modo de operacion temporizador neumatico Metal Work

Material for professional use, install respecting the regulations in force at the place of installation.
